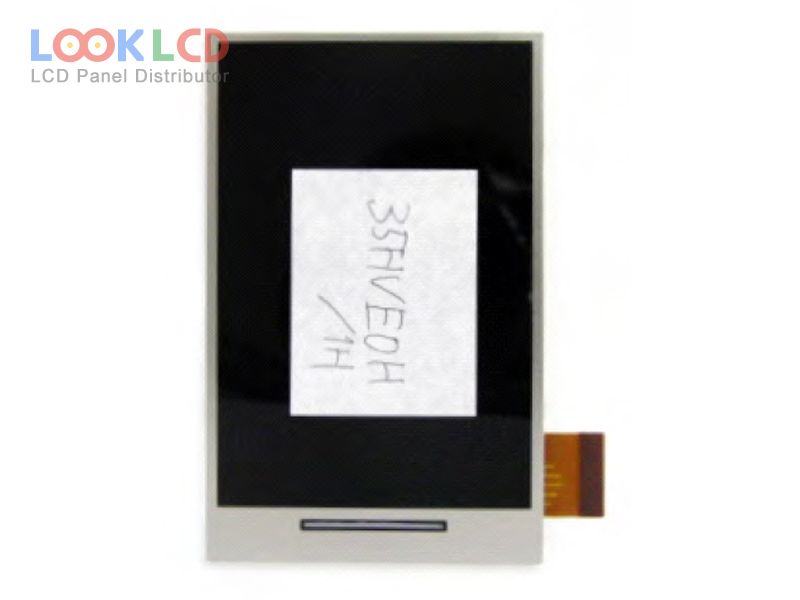

| PartNumber | 35HVE1H |
| Brand | SII |
| Size | 3.5 |
| Application | HHP |
| Resolution | 320(RGB)×480 , HVGA |
| Composition | LCM |
| Brightness | 350 cd/m² (Typ.) |
| CR | 600:1 |
| Colors | 262K |
| Backlight | WLED |
| Interface | CPU |
| Panel Brand | SII |
| Panel Model | 35HVE1H |
| Panel Type | a-Si TFT-LCD , LCM |
| Panel Size | 3.5 inch |
| Display Mode | E-mode, Normally White, Transmissive |
| Active Area | 48.96×73.44 mm |
| Outline | 54.96×85.94×2.3 mm |
| Surface | Clear, Hard coating |
| Contrast Ratio | 600:1 (Typ.) |
| Display Colors | 262K (6-bit), CIE193160% |
| Response Time | 30 (Typ.)(Tr+Td) |
| Viewing Angle | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| Lamp Type | 1S5PWLED |
| Signal Interface | CPU, 45 pins |
