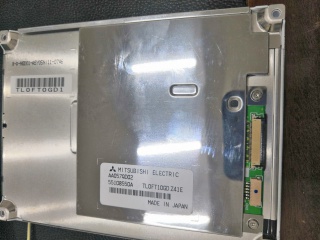

| PartNumber | AA057QD02 |
| Brand | Mitsubishi |
| Size | 5.7 |
| Application | Industrial |
| Resolution | 320×240 |
| Composition | a-Si TFT-LCD , LCM |
| Brightness | |
| CR | 800:1 |
| Colors | 262K |
| Backlight | WLED |
| Interface | |
| Diagonal Size | 5.7 inch |
| Pixel Format | 320(RGB)×240 [QVGA] 70PPI |
| Active Area | 115.2(H)×86.4(V) mm |
| Luminance | - |
| View Direction | 12 o'clock |
| Viewing Angle | 80/80/80/60 (Typ.)(CR≥10) |
| Support Color | 262K |
| Weight | - |
| Frame Rate | 60Hz |
| Environment | Operating Temperature: -30 ~ 80 °C ; Storage Temperature: -30 ~ 80 °C |
| Model | AA057QD02 |
| Type | a-Si TFT-LCD , LCM |
| Configuration | RGB Vertical Stripe |
| Outline Dim. | - |
| Contrast Ratio | 800:1 (Typ.) (TM) |
| Response Time | 8/22 (Typ.)(Tr/Td) |
| Operating Mode | TN, Normally White, Transmissive |
| Light Source | WLED |
| Designed For | Industrial |
| Touch Panel | - |
