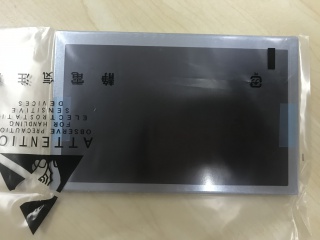

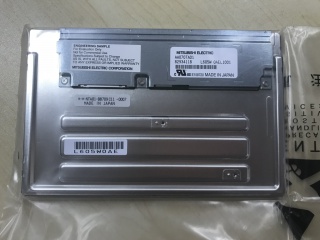

| PartNumber | AA070TA01 |
| Brand | Mitsubishi |
| Size | 7.0 |
| Application | Industrial Outdoor High Brightness Automotive Display |
| Resolution | 1280(RGB)×768, WXGA, 214PPI |
| Composition | a-Si TFT-LCD , LCM |
| Brightness | 1000 cd/m² (Typ.) |
| CR | 1000:1 |
| Colors | 262K/16.7M |
| Backlight | WLED |
| Interface | |
| Panel Brand | Mitsubishi |
| Panel Size | 7.0" |
| Display Area | 151.68(W)×91.01(H) mm |
| Outline Size | 169.8(W)×109.7(H) mm |
| Viewing Angle | 88/88/88/88 (Typ.)(CR≥10) |
| Best View on | Symmetry |
| Display Colors | 262K/16.7M 49% NTSC |
| Frequency | 60Hz |
| Weight | 200g (Typ.) |
| Panel Model | AA070TA01 |
| Panel Type | a-Si TFT-LCD , LCM |
| Pixel Format | RGB Vertical Stripe |
| Bezel Opening | 155.1(W)×94.4(H) mm |
| Surface | Antiglare, Hard coating (3H) |
| Contrast Ratio | 1000:1 (Typ.) (TM) |
| Display Mode | SWV, Normally Black, Transmissive |
| Response Time | 12/12 (Typ.)(Tr/Td) |
| Lamp Type | WLED , 100K hours , With LED Driver |
| Touch Screen | Without |
