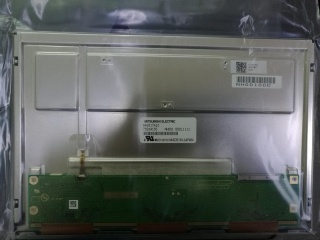

| PartNumber | AA101TA12 |
| Brand | Mitsubishi |
| Size | 10.1 |
| Application | Industrial Outdoor High Brightness |
| Resolution | 1280(RGB)×800, WXGA, 149PPI |
| Composition | a-Si TFT-LCD , LCM |
| Brightness | 800 cd/m² (Typ.) |
| CR | 1000:1 |
| Colors | 262K/16.7M |
| Backlight | 2 |
| Interface | LVDS |
| Panel Brand | Mitsubishi |
| Panel Size | 10.1" |
| Display Area | 216.96(W)×135.6(H) mm |
| Outline Size | 231(W)×153.5(H) ×9(D) mm |
| Viewing Angle | 88/88/88/88 (Typ.)(CR≥10) |
| Best View on | Symmetry |
| Display Colors | 262K/16.7M 50% NTSC |
| Frequency | 60Hz |
| Panel Weight | 310g |
| Signal Interface | LVDS (1 ch, 6/8-bit) , 30 pins Connector |
| Input Voltage | 3.3V (Typ.) |
| Environment | Operating Temp.: -40 ~ 80 °C ; Storage Temp.: -40 ~ 80 °C |
| Panel Model | AA101TA12 |
| Panel Type | a-Si TFT-LCD , LCM |
| Pixel Format | RGB Vertical Stripe |
| Bezel Opening | 220.96(W)×139.6(H) mm |
| Surface | Antiglare, Hard coating (3H) |
| Contrast Ratio | 1000:1 (Typ.) (TM) |
| Display Mode | SWV, Normally Black, Transmissive |
| Response Time | 12/12 (Typ.)(Tr/Td) |
| Lamp Type | 2 strings WLED , 100K hours , Without Driver |
| Touch Screen | Without |
