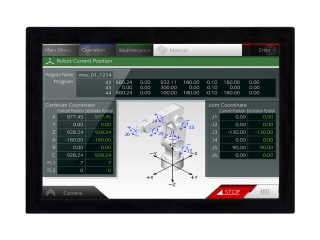

| PartNumber | AA104SL02DDE11 |
| Brand | Mitsubishi |
| Size | 10.4 |
| Application | Industrial |
| Resolution | 800×600 |
| Composition | a-Si TFT-LCD , LCM |
| Brightness | |
| CR | 700:1 |
| Colors | 262K/16.7M |
| Backlight | WLED |
| Interface | |
| Diagonal Size | 10.4 inch |
| Pixel Format | 800(RGB)×600 [SVGA] 96PPI |
| Active Area | 211.2(H)×158.4(V) mm |
| Bezel Area | - |
| Luminance | 560 cd/m² (Typ.) |
| View Direction | 6 o'clock |
| Viewing Angle | 80/80/80/60 (Typ.)(CR≥10) |
| Support Color | 262K/16.7M 40% NTSC |
| Weight | 780g (Typ.) |
| Frame Rate | 60Hz |
| Model | AA104SL02DDE11 |
| Type | a-Si TFT-LCD , LCM |
| Configuration | RGB Vertical Stripe |
| Outline Dim. | 240.6(H)×190.8(V) ×15.5(D) mm |
| Treatment | Clear |
| Contrast Ratio | 700:1 (Typ.) (TM) |
| Response Time | 4/12 (Typ.)(Tr/Td) |
| Operating Mode | TN, Normally White, Transmissive |
| Light Source | WLED , 100K hours , With LED Driver |
| Designed For | Industrial |
| Touch Panel | PCAP |
