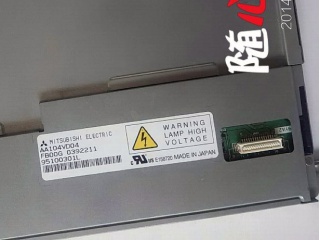

| PartNumber | AA104VD04 |
| Brand | Mitsubishi |
| Size | 10.4 |
| Application | Industrial |
| Resolution | 640(RGB)×480, VGA, 76PPI |
| Composition | a-Si TFT-LCD , LCM |
| Brightness | - |
| CR | 600:1 |
| Colors | 262K |
| Backlight | - |
| Interface | CMOS |
| Panel Brand | Mitsubishi |
| Panel Size | 10.4" |
| Display Area | 211.2(W)×158.4(H) mm |
| Viewing Angle | 70/70/65/65 (Typ.)(CR≥10) |
| Best View on | 6 o'clock |
| Display Colors | 262K 40% NTSC |
| Frequency | 60Hz |
| Panel Weight | 600g (Typ.) |
| Signal Interface | CMOS (1 ch, 6-bit) , 31 pins Connector |
| Input Voltage | 3.3V (Typ.)(VCC) |
| Environment | Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -20 ~ 80 °C |
| Panel Model | AA104VD04 |
| Panel Type | a-Si TFT-LCD , LCM |
| Pixel Format | RGB Vertical Stripe |
| Bezel Opening | - |
| Contrast Ratio | 600:1 (Typ.) (TM) |
| Display Mode | TN, Normally White, Transmissive |
| Response Time | 4/12 (Typ.)(Tr/Td) |
| Lamp Type | |
| Touch Screen | Without |
