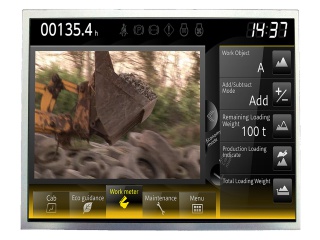

| PartNumber | AA104XN11 |
| Brand | Mitsubishi |
| Size | 10.4 |
| Application | Industrial Outdoor High Brightness |
| Resolution | 1024(RGB)×768, XGA, 123PPI |
| Composition | a-Si TFT-LCD, LCM |
| Brightness | 1300 cd/m² (Typ.) |
| CR | 1000:1 |
| Colors | 262K/16.7M |
| Backlight | WLED |
| Interface | LVDS |
| Panel Brand | Mitsubishi |
| Panel Model | AA104XN11 |
| Panel Size | 10.4" |
| Panel Type | a-Si TFT-LCD, LCM |
| Pixel Format | RGB Vertical Stripe |
| Display Area | 211.2(W)×158.4(H) mm |
| Bezel Opening | - |
| Outline Size | 230(W)×180.2(H) mm |
| Surface | - |
| Contrast Ratio | 1000:1 (Typ.) (TM) |
| Viewing Angle | 88/88/88/88 (Typ.)(CR≥10) |
| Display Mode | SWV, Normally Black |
| Best View on | Symmetry |
| Response Time | - |
| Display Colors | 262K/16.7M 70% NTSC |
| Lamp Type | WLED , 100K hours , Without Driver |
| Frequency | 60Hz |
| Touch Screen | Without |
| Panel Weight | - |
| Signal Interface | LVDS (1 ch, 6/8-bit) |
| Environment | Operating Temp.: -30 ~ 80 °C ; Storage Temp.: -40 ~ 80 °C ; Vibration Level: 6.8G (66.64 m/s²) |
| AA104SH02 | Mitsubishi | 10.4 | 800×600 |
| AA104SH02--T1 | Mitsubishi | 10.4 | 800×600 |
| AA104SL02-DE1 | Mitsubishi | 10.4 | 800×600 |
| AA104VC01 | Mitsubishi | 10.4 | 640×480 |
| AA104VC04 | Mitsubishi | 10.4 | 640×480 |
| AA104XD02 | Mitsubishi | 10.4 | 1024×768 |
| AA104XD12 | Mitsubishi | 10.4 | 1024×768 |
| AA104XG12 | Mitsubishi | 10.4 | 1024×768 |
| AA106TA01 | Mitsubishi | 10.6 | 1280×768 |
| AA10SA6C-ADDD | Mitsubishi | 10.4 | 800×600 |
