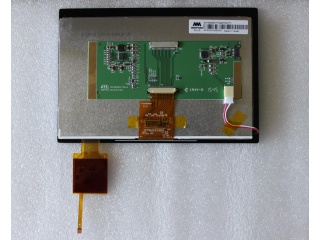

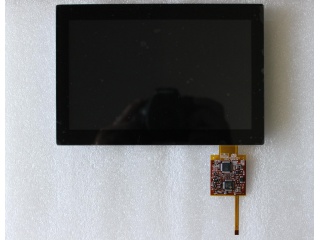

| PartNumber | AM-1024600K7TMQW-T53H |
| Brand | AMPIRE |
| Size | 7.0 |
| Application | Industrial |
| Resolution | 1024(RGB)×600, WSVGA, 169PPI |
| Composition | a-Si TFT-LCD , LCM |
| Brightness | 425 cd/m² (Typ.) |
| CR | 700:1 |
| Colors | 262K/16.7M |
| Backlight | 5S3P |
| Interface | LVDS |
| Panel Brand | AMPIRE |
| Panel Size | 7.0" |
| Display Area | 153.6(W)×90(H) mm |
| Outline Size | 165.5(W)×104.44(H) ×11.93(D) mm |
| Viewing Angle | 75/75/70/75 (Typ.)(CR≥10) |
| Best View on | 6 o'clock |
| Display Colors | 262K/16.7M |
| Frequency | 60Hz |
| Panel Weight | TBD |
| Signal Interface | LVDS (1 ch, 6/8-bit) , 20 pins Connector |
| Input Voltage | 3.3V (Typ.) |
| Environment | Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C |
| Panel Model | AM-1024600K7TMQW-T53H |
| Panel Type | a-Si TFT-LCD , LCM |
| Pixel Format | RGB Vertical Stripe |
| Bezel Opening | - |
| Surface | - |
| Contrast Ratio | 700:1 (Typ.) (TM) |
| Display Mode | TN, Normally White, Transmissive |
| Response Time | 20/20 (Typ.)(Tr/Td) |
| Lamp Type | 5S3P WLED , 50K hours , With LED Driver |
| Touch Screen | PCAP |
