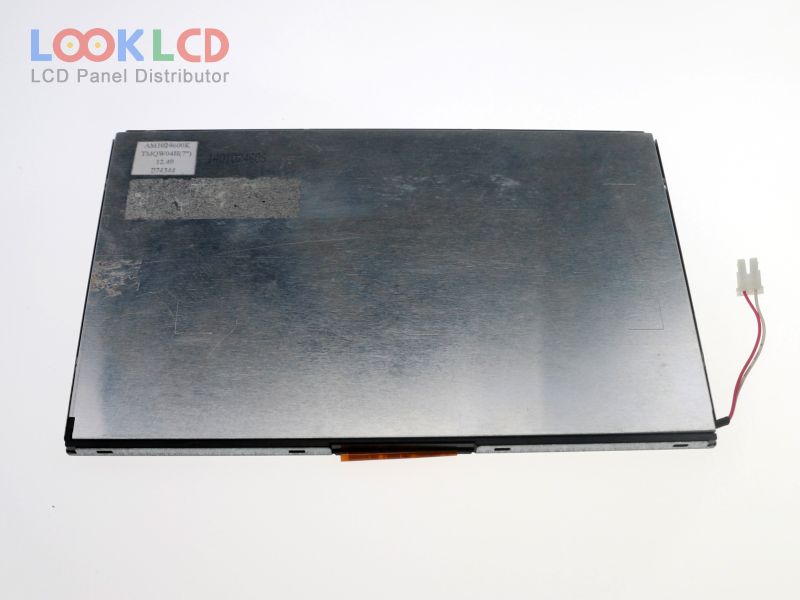

| PartNumber | AM-1024600KTMQW-04H |
| Brand | AMPIRE |
| Size | 7.0 |
| Application | CNS |
| Resolution | 1024(RGB)×600 , WSVGA |
| Composition | LCM |
| Brightness | 1000 cd/m² (Typ.) |
| CR | 700:1 |
| Colors | 16.7M |
| Backlight | WLED |
| Interface | LVDS |
| Panel Brand | AMPIRE |
| Panel Model | AM-1024600KTMQW-04H |
| Panel Type | a-Si TFT-LCD , LCM |
| Panel Size | 7.0 inch |
| Display Mode | TN, Normally White, Transmissive |
| Active Area | 153.6×90 mm |
| Outline | 165.5×104.44×5.3 mm |
| Surface | Glare (Haze 0%), Hard coating |
| Contrast Ratio | 700:1 (Typ.) |
| Display Colors | 16.7M (8-bit) |
| Response Time | 10/15 (Typ.)(Tr/Td) |
| Viewing Angle | 75/75/75/75 (Typ.)(CR≥10)(L/R/U/D) |
| Frequency | 60Hz |
| Lamp Type | 8S3PWLEDWithout Driver |
| Signal Interface | LVDS (1 ch, 8-bit), 39 pins |
| Input Voltage | 3.3V (Typ.) |
