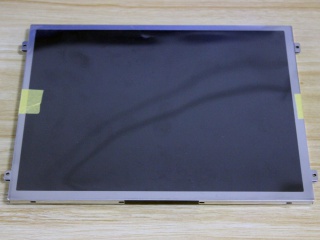

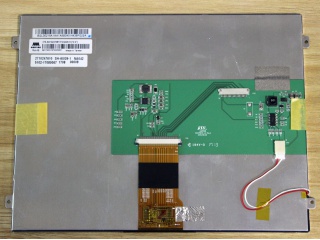

| PartNumber | AM-1024768Y2TZQW-A1H |
| Brand | AMPIRE |
| Size | 10.4 |
| Application | Industrial Outdoor High Brightness |
| Resolution | 1024(RGB)×768, XGA, 123PPI |
| Composition | a-Si TFT-LCD, LCM |
| Brightness | 1000 cd/m² (Typ.) |
| CR | 900:1 |
| Colors | 16.2M |
| Backlight | WLED |
| Interface | LVDS |
| Panel Brand | AMPIRE |
| Panel Model | AM-1024768Y2TZQW-A1H |
| Panel Size | 10.4" |
| Panel Type | a-Si TFT-LCD, LCM |
| Pixel Format | RGB Vertical Stripe |
| Display Area | 211.2(W)×158.4(H) mm |
| Bezel Opening | 213.2(W)×160.4(H) mm |
| Outline Size | 236(W)×174.3(H) ×10.4(D) mm |
| Surface | Antiglare, Hard coating (3H) |
| Contrast Ratio | 900:1 (Typ.) (TM) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
| Display Mode | IPS, Normally Black, Transmissive |
| Best View on | Symmetry |
| Response Time | 30 (Typ.)(Tr+Td) |
| Display Colors | 16.2M |
| Lamp Type | WLED , 30K hours , With LED Driver |
| Frequency | 60Hz |
| Touch Screen | Without |
| Panel Weight | TBD |
| Signal Interface | LVDS (1 ch, 8-bit) , 20 pins Connector |
| Input Voltage | 3.3V (Typ.) |
| Environment | Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C |
