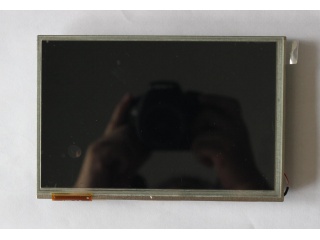

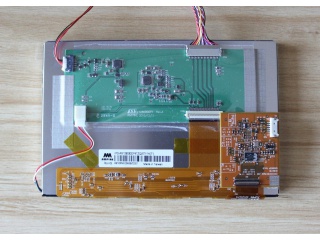

| PartNumber | AM-1280800P4TZQW-T11H |
| Brand | AMPIRE |
| Size | 7.0 |
| Application | Industrial |
| Resolution | 1280(RGB)×800, WXGA, 217PPI |
| Composition | a-Si TFT-LCD , LCM |
| Brightness | 850 cd/m² (Typ.) |
| CR | 800:1 |
| Colors | 16.7M |
| Backlight | 6S4P |
| Interface | |
| Panel Brand | AMPIRE |
| Panel Size | 7.0" |
| Display Area | 149.76(W)×93.6(H) mm |
| Outline Size | 162.3(W)×107.9(H) ×11.8(D) mm |
| Viewing Angle | 80/80/80/80 (Typ.)(CR≥10) |
| Best View on | Symmetry |
| Display Colors | 16.7M 50% NTSC |
| Frequency | 60Hz |
| Weight | - |
| Panel Model | AM-1280800P4TZQW-T11H |
| Panel Type | a-Si TFT-LCD , LCM |
| Pixel Format | RGB Vertical Stripe |
| Bezel Opening | 152.76(W)×96.6(H) mm |
| Surface | - |
| Contrast Ratio | 800:1 (Typ.) (TM) |
| Display Mode | SFT, Normally Black, Transmissive |
| Response Time | 35 (Typ.)(Tr+Td) |
| Lamp Type | 6S4P WLED , 50K hours , With LED Driver |
| Touch Screen | PCAP |
