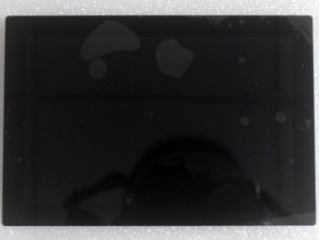

| PartNumber | AM-1280800P4TZQW-T21H |
| Brand | AMPIRE |
| Size | 7.0 |
| Application | Industrial |
| Resolution | 1280×800 |
| Composition | a-Si TFT-LCD, LCM |
| Brightness | |
| CR | 800:1 |
| Colors | 16.7M |
| Backlight | WLED |
| Interface | LVDS |
| Model | AM-1280800P4TZQW-T21H |
| Diagonal Size | 7.0 inch |
| Type | a-Si TFT-LCD, LCM |
| Pixel Format | 1280(RGB)×800 [WXGA] 217PPI |
| Configuration | RGB Vertical Stripe |
| Active Area | 149.76(H)×93.6(V) mm |
| Outline Dim. | 174(H)×118(V) ×13.63(D) mm |
| Bezel Area | - |
| Treatment | Glare (Haze 0%) |
| Luminance | 850 cd/m² (Typ.) |
| Contrast Ratio | 800:1 (Typ.) (TM) |
| View Direction | Symmetry |
| Response Time | 35 (Typ.)(Tr+Td) |
| Viewing Angle | 80/80/80/80 (Typ.)(CR≥10) |
| Operating Mode | SFT, Normally Black, Transmissive |
| Support Color | 16.7M 50% NTSC |
| Light Source | WLED [6S4P] , 50K hours , With LED Driver |
| Weight | - |
| Designed For | Industrial |
| Frame Rate | 60Hz |
| Touch Panel | PCAP |
| Interface Type | LVDS (1 ch, 8-bit) , 20 pins Connector |
| Power Supply | 3.3V (Typ.) |
| Environment | Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C |
