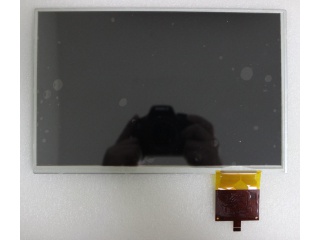

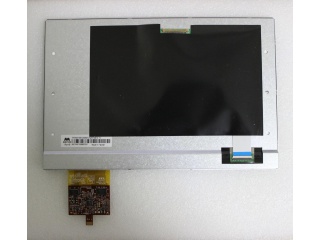

| PartNumber | AM-19201200CTZQW-00 |
| Brand | AMPIRE |
| Size | 10.1 |
| Application | Industrial Outdoor H |
| Resolution | 1920×1200 |
| Composition | LCM, a-Si TFT-LCD |
| Brightness | |
| CR | 800:1 |
| Colors | 16.7M |
| Backlight | WLED , 50K hours , With LED Driver |
| Interface | |
| Manufacturer | AMPIRE |
| Model Name | AM-19201200CTZQW-00 |
| Screen Size | 10.1 inch |
| Screen Type | LCM, a-Si TFT-LCD |
| Pixel Number | 1920(RGB)×1200 (WUXGA) 225PPI |
| Arrangement | RGB Vertical Stripe |
| Active Area(mm) | 216.576 × 135.36 (H×V) |
| Outline(mm) | 244.8 × 155.3 × 7 (H×V×D) |
| Luminance | 1000 cd/m² (Typ.) |
| Contrast Ratio | 800 : 1 (Typ.) (TM) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
| Response | 25 (Typ.)(Tr+Td) ms |
| Good View at | Symmetry |
| Work Mode | AHVA, Normally Black, Transmissive |
| Color Depth | 16.7M 49% NTSC |
| Mass | - |
| Used for | Industrial Outdoor High Brightness |
| Refresh Rate | 60Hz |
| Touchscreen | Without |
| Storage Temp.: -20 ~ 65 °C Operating Temp.: -20 ~ 65 °C |
