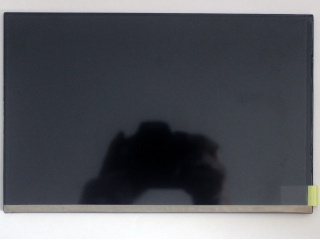

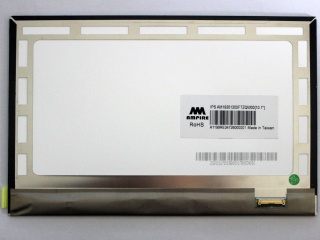

| PartNumber | AM-19201200FTZQW-00 |
| Brand | AMPIRE |
| Size | 10.1 |
| Application | Industrial |
| Resolution | 1920(RGB)×1200, WUXGA, 224PPI |
| Composition | a-Si TFT-LCD, LCM |
| Brightness | 380 cd/m² (Typ.) |
| CR | 800:1 |
| Colors | 16.7M |
| Backlight | WLED |
| Interface | eDP |
| Panel Brand | AMPIRE |
| Panel Model | AM-19201200FTZQW-00 |
| Panel Size | 10.1" |
| Panel Type | a-Si TFT-LCD, LCM |
| Pixel Format | RGB Vertical Stripe |
| Display Area | 216.806(W)×135.504(H) mm |
| Bezel Opening | - |
| Outline Size | 227.72(W)×147.8(H) ×5.35(D) mm |
| Surface | - |
| Contrast Ratio | 800:1 (Typ.) (TM) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
| Display Mode | AHVA, Normally Black, Transmissive |
| Best View on | Symmetry |
| Response Time | 25 (Typ.)(Tr+Td) |
| Display Colors | 16.7M 50% NTSC |
| Lamp Type | WLED , 30K hours , With LED Driver |
| Frequency | 60Hz |
| Touch Screen | Without |
| Panel Weight | - |
| Signal Interface | eDP (2 Lanes) , eDP1.2 , 30 pins Connector |
| Input Voltage | 3.3V (Typ.) |
| Environment | Operating Temp.: -10 ~ 60 °C ; Storage Temp.: -20 ~ 60 °C |
| A101VW01 V3 | AUO | 10.1 | 800×480 |
| AM-19201200B1TZQW-T00 | AMPIRE | 10.1 | 1920×1200 |
| B101EVT04.0 | AUO | 10.1 | 1280×800 |
| CLAA101WH13LE | CPT | 10.1 | 1280×800 |
| HSD101PWW1-F00 | HannStar | 10.1 | 1280×800 |
| HSD101PWW1-F01 | HannStar | 10.1 | 1280×800 |
| HSD101PWW2-A00 | HannStar | 10.1 | 1280×800 |
| LP101WH1-TLB5 | LG Display | 10.1 | 1366×768 |
| M101NWT2 R2 | IVO | 10.1 | 1024×600 |
| N101BGE-L21 | Innolux | 10.1 | 1366×768 |
