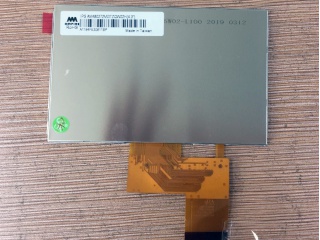

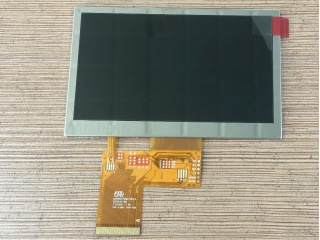

| PartNumber | AM-480272MGTZQW-02H |
| Brand | AMPIRE |
| Size | 4.3 |
| Application | Industrial Outdoor High Brightness Automotive Display |
| Resolution | 480(RGB)×272, WQVGA, 128PPI |
| Composition | a-Si TFT-LCD, LCM |
| Brightness | 1000 cd/m² (Typ.) |
| CR | 800:1 |
| Colors | 16.7M |
| Backlight | 5S3P |
| Interface | Parallel |
| Panel Brand | AMPIRE |
| Panel Model | AM-480272MGTZQW-02H |
| Panel Size | 4.3" |
| Panel Type | a-Si TFT-LCD, LCM |
| Pixel Format | RGB Vertical Stripe |
| Display Area | 95.04(W)×53.856(H) mm |
| Bezel Opening | 97.6(W)×56.0(H) mm |
| Outline Size | 105.6(W)×67.2(H) ×3.1(D) mm |
| Surface | - |
| Contrast Ratio | 800:1 (Typ.) (TM) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
| Display Mode | IPS, Normally Black, Transmissive |
| Best View on | Symmetry |
| Response Time | 30 (Typ.)(Tr+Td) |
| Display Colors | 16.7M 51% NTSC |
| Lamp Type | 5S3P WLED , Without Driver |
| Frequency | 60Hz |
| Touch Screen | Without |
| Panel Weight | - |
| Signal Interface | Parallel RGB (1 ch, 8-bit) , 40 pins FPC |
| Input Voltage | 3.3V (Typ.) |
| Environment | Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C |
