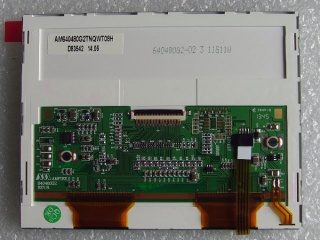

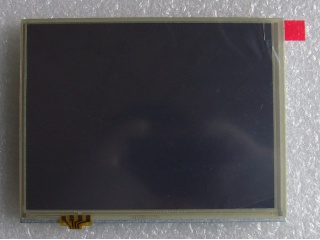

| PartNumber | AM-640480G2TNQW-T08H |
| Brand | AMPIRE |
| Size | 5.7 |
| Application | Industrial |
| Resolution | 640×480 |
| Composition | LCM, a-Si TFT-LCD |
| Brightness | |
| CR | 250:1 |
| Colors | 262K |
| Backlight | WLED , 20K hours , With LED Driver |
| Interface | Parallel |
| Manufacturer | AMPIRE |
| Model Name | AM-640480G2TNQW-T08H |
| Screen Size | 5.7 inch |
| Screen Type | LCM, a-Si TFT-LCD |
| Pixel Number | 640(RGB)×480 (VGA) 141PPI |
| Arrangement | RGB Vertical Stripe |
| Active Area(mm) | 115.2 × 86.4 (H×V) |
| Outline(mm) | 127 × 98.43 × 10.2 (H×V×D) |
| Bezel Area(mm) | 118.0 × 89.2 (H×V) |
| Treatment | - |
| Luminance | 200 cd/m² (Typ.) |
| Contrast Ratio | 250 : 1 (Typ.) (TM) |
| Viewing Angle | 70/70/50/50 (Typ.)(CR≥10) |
| Response | 50 (Typ.)(Tr+Td) ms |
| Good View at | 12 o'clock |
| Work Mode | TN, Normally White, Transmissive |
| Color Depth | 262K 50% NTSC |
| Mass | - |
| Used for | Industrial |
| Refresh Rate | 60Hz |
| Touchscreen | 4-wire Resistive Touch |
| Signal Type | Parallel RGB (1 ch, 6-bit) , Connector 40 pins |
| Voltage Supply | 3.3/5.0V (Typ.)(VCC/VDD) |
| Max. Ratings | Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C |
