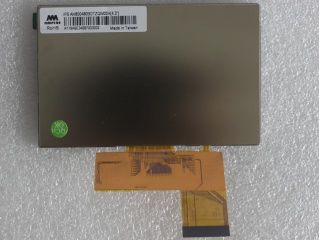

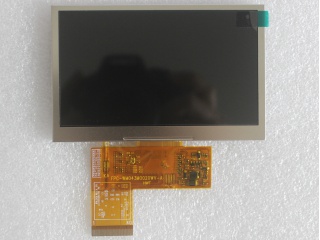

| PartNumber | AM-800480BDTZQW-00H |
| Brand | AMPIRE |
| Size | 4.3 |
| Application | Industrial Automotiv |
| Resolution | 800×480 |
| Composition | a-Si TFT-LCD, LCM |
| Brightness | |
| CR | 700:1 |
| Colors | 16.2M |
| Backlight | WLED |
| Interface | Parallel |
| Model | AM-800480BDTZQW-00H |
| Diagonal Size | 4.3 inch |
| Type | a-Si TFT-LCD, LCM |
| Pixel Format | 800(RGB)×480 [WVGA] 216PPI |
| Configuration | RGB Vertical Stripe |
| Active Area | 95.04(H)×53.856(V) mm |
| Outline Dim. | 105.3(H)×67(V) mm |
| Bezel Area | 97.9(H)×56.7(V) mm |
| Treatment | - |
| Luminance | 500 cd/m² (Typ.) |
| Contrast Ratio | 700:1 (Typ.) (TM) |
| View Direction | Symmetry |
| Response Time | 40 (Typ.)(Tr+Td) |
| Viewing Angle | 80/80/80/80 (Typ.)(CR≥10) |
| Operating Mode | Normally Black, Transmissive |
| Support Color | 16.2M |
| Light Source | WLED [6S2P] , 50K hours , W/O Driver |
| Weight | - |
| Designed For | Industrial Automotive Display |
| Frame Rate | 60Hz |
| Touch Panel | Without |
| Interface Type | Parallel RGB (1 ch, 8-bit) , 40 pins FPC |
| Power Supply | 3.3V (Typ.) |
| Environment | Operating Temperature: -30 ~ 85 °C ; Storage Temperature: -30 ~ 85 °C |
