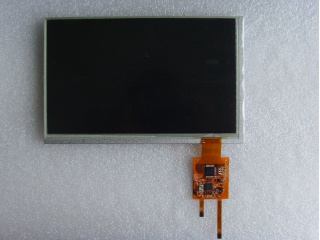

| PartNumber | AM-800480RBTMQW-TA1H-A |
| Brand | AMPIRE |
| Size | 7.0 |
| Application | Industrial |
| Resolution | 800(RGB)×480, WVGA, 133PPI |
| Composition | a-Si TFT-LCD, LCM |
| Brightness | 255 cd/m² (Typ.) |
| CR | 400:1 |
| Colors | 262K |
| Backlight | 3S10P |
| Interface | LVDS |
| Panel Brand | AMPIRE |
| Panel Model | AM-800480RBTMQW-TA1H-A |
| Panel Size | 7.0" |
| Panel Type | a-Si TFT-LCD, LCM |
| Pixel Format | RGB Vertical Stripe |
| Display Area | 152.4(W)×91.44(H) mm |
| Bezel Opening | 155.3(W)×94.3(H) mm |
| Outline Size | 165(W)×104.44(H) ×8.06(D) mm |
| Surface | - |
| Contrast Ratio | 400:1 (Typ.) (TM) |
| Viewing Angle | 70/70/70/60 (Typ.)(CR≥10) |
| Display Mode | TN, Normally White, Transmissive |
| Best View on | 6 o'clock |
| Response Time | 5/11 (Typ.)(Tr/Td) |
| Display Colors | 262K |
| Lamp Type | 3S10P WLED , 40K hours , Without Driver |
| Frequency | 60Hz |
| Touch Screen | PCAP |
| Panel Weight | TBD |
| Signal Interface | LVDS (1 ch, 6-bit) , 20 pins Connector |
| Input Voltage | 3.3V (Typ.) |
| Environment | Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C |
