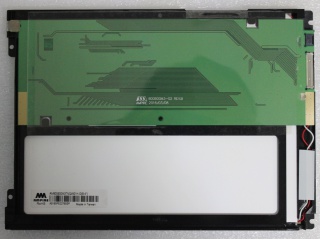

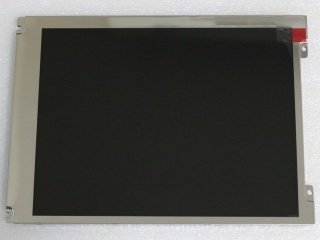

| PartNumber | AM-800600M3TNQW-01H-G |
| Brand | AMPIRE |
| Size | 8.4 |
| Application | Industrial |
| Resolution | 800×600 |
| Composition | LCM, a-Si TFT-LCD |
| Brightness | |
| CR | 600:1 |
| Colors | 262K |
| Backlight | 12S4P WLED , 50K hours , With LED Driver |
| Interface | LVDS |
| Manufacturer | AMPIRE |
| Model Name | AM-800600M3TNQW-01H-G |
| Screen Size | 8.4 inch |
| Screen Type | LCM, a-Si TFT-LCD |
| Pixel Number | 800(RGB)×600 (SVGA) 119PPI |
| Arrangement | RGB Vertical Stripe |
| Active Area(mm) | 170.4 × 127.8 (H×V) |
| Outline(mm) | 203 × 145.5 × 8.3 (H×V×D) |
| Bezel Area(mm) | 174.15 × 131.2 (H×V) |
| Treatment | - |
| Luminance | 450 cd/m² (Typ.) |
| Contrast Ratio | 600 : 1 (Typ.) (TM) |
| Viewing Angle | 75/75/60/70 (Typ.)(CR≥10) |
| Response | 8 (Typ.)(Tr+Td) ms |
| Good View at | - |
| Work Mode | TN, Normally White, Transmissive |
| Color Depth | 262K |
| Mass | 280g |
| Used for | Industrial |
| Refresh Rate | 60Hz |
| Touchscreen | Without |
| Signal Type | LVDS (1 ch, 6-bit) , Connector 20 pins |
| Voltage Supply | 3.3V (Typ.) |
| Max. Ratings | Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C |
