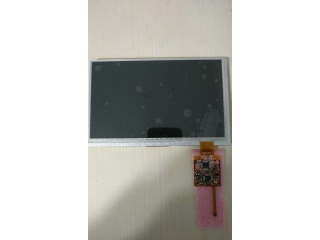

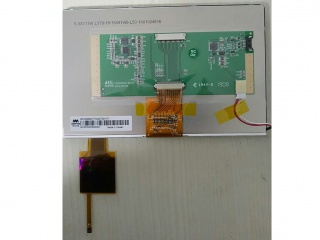

| PartNumber | AM1024600K7TMQW-T62H |
| Brand | AMPIRE |
| Size | 7.0 |
| Application | Industrial |
| Resolution | 1024(RGB)×600, WSVGA, 169PPI |
| Composition | a-Si TFT-LCD , LCM |
| Brightness | - |
| CR | 700:1 |
| Colors | 262K/16.7M |
| Backlight | WLED |
| Interface | |
| Panel Brand | AMPIRE |
| Panel Size | 7.0" |
| Display Area | 153.6(W)×90(H) mm |
| Viewing Angle | 75/75/70/75 (Typ.)(CR≥10) |
| Best View on | - |
| Display Colors | 262K/16.7M |
| Frequency | 60Hz |
| Weight | - |
| Panel Model | AM1024600K7TMQW-T62H |
| Panel Type | a-Si TFT-LCD , LCM |
| Pixel Format | RGB Vertical Stripe |
| Bezel Opening | - |
| Contrast Ratio | 700:1 (Typ.) (TM) |
| Display Mode | TN, Normally White, Transmissive |
| Response Time | 20/20 (Typ.)(Tr/Td) |
| Lamp Type | WLED |
| Touch Screen | PCAP |
