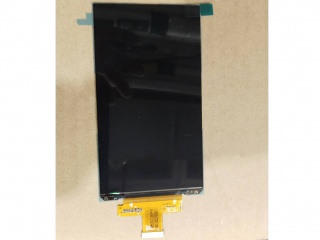

| PartNumber | AMS567JD09 |
| Brand | SAMSUNG |
| Size | 5.7 |
| Application | Mobile Phone HMD VR AR |
| Resolution | 1440(RG/BG)×2560, Quad-HD, 423PPI |
| Composition | AM-OLED , OLED |
| Brightness | 120 cd/m² (Typ.) |
| CR | - |
| Colors | 16.7M |
| Backlight | self |
| Interface | |
| Panel Brand | SAMSUNG |
| Panel Size | 5.7" |
| Display Area | 70.56(W)×125.44(H) mm |
| Outline Size | 73.2(W)×132.76(H) mm |
| Viewing Angle | - |
| Best View on | Symmetry |
| Display Colors | 16.7M 103% NTSC |
| Frequency | 60Hz |
| Weight | - |
| Panel Model | AMS567JD09 |
| Panel Type | AM-OLED , OLED |
| Pixel Format | RG/BG PenTile |
| Bezel Opening | - |
| Surface | Hard coating |
| Contrast Ratio | - |
| Display Mode | - |
| Response Time | - |
| Lamp Type | self |
| Touch Screen | Without |
