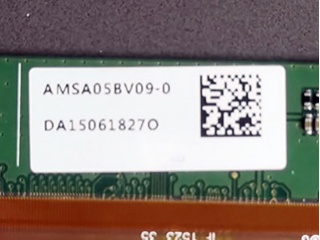

| PartNumber | AMSA05BV09 |
| Brand | SAMSUNG |
| Size | 10.5 |
| Application | Pad & Tablet |
| Resolution | 2560(RGB)×1600, 287PPI |
| Composition | AM-OLED, OLED |
| Brightness | 300 cd/m² (Typ.) |
| CR | 54000:1 |
| Colors | 16.7M |
| Backlight | self |
| Interface | MIPI |
| Panel Brand | SAMSUNG |
| Panel Model | AMSA05BV09 |
| Panel Size | 10.5" |
| Panel Type | AM-OLED, OLED |
| Pixel Format | S-Stripe RGB |
| Display Area | 226.56(W)×141.6(H) mm |
| Bezel Opening | - |
| Outline Size | 251.4(W)×171.1(H) mm |
| Surface | - |
| Contrast Ratio | 54000:1 (Min.) (TM) |
| Viewing Angle | 80/80/80/80 (Typ.)(CR≥200) |
| Display Mode | - |
| Best View on | Symmetry |
| Response Time | - |
| Display Colors | 16.7M 100% NTSC |
| Lamp Type | self |
| Frequency | 60Hz |
| Touch Screen | PCAP |
| Driver IC | COG Built-in EA8002ASA |
| Panel Weight | 143/148g (Typ./Max.) |
| Signal Interface | MIPI (2 ch, 4 data lanes) , 80 pins Connector |
| Input Voltage | 1.8/3.3/3.8V (Typ.)(VDD1/VDD3/VBAT) |
| Environment | Operating Temp.: -20 ~ 60 °C ; Storage Temp.: -30 ~ 70 °C |
