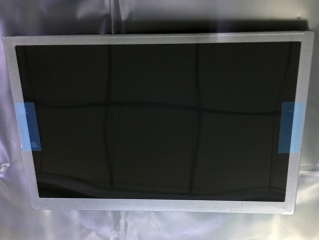

| PartNumber | AT070MP11 |
| Brand | Mitsubishi |
| Size | 7.0 |
| Application | Industrial Outdoor H |
| Resolution | 800×480 |
| Composition | LCM , a-Si TFT-LCD |
| Brightness | |
| CR | 1000:1 |
| Colors | 262K/16.7M |
| Backlight | WLED , 100K hours , No Driver |
| Interface | LVDS |
| Manufacturer | Mitsubishi |
| Model Name | AT070MP11 |
| Screen Size | 7.0 inch |
| Screen Type | LCM , a-Si TFT-LCD |
| Pixel Number | 800(RGB)×480 (WVGA) 133PPI |
| Arrangement | RGB Vertical Stripe |
| Active Area(mm) | 152.4 × 91.44 (H×V) |
| Outline(mm) | 169.8 × 109.7 × 9.4 (H×V×D) |
| Bezel Area(mm) | 154.4 × 93.5 (H×V) |
| Treatment | Antiglare, Hard coating (3H) |
| Luminance | 1300 cd/m² (Typ.) |
| Contrast Ratio | 1000 : 1 (Typ.) (TM) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
| Response | 4/12 (Typ.)(Tr/Td) ms |
| Good View at | Symmetry |
| Work Mode | SWV, Normally Black, Transmissive |
| Color Depth | 262K/16.7M 50% NTSC |
| Mass | 200g |
| Used for | Industrial Outdoor High Brightness Automotive Display |
| Refresh Rate | 60Hz |
| Touchscreen | Without |
| Signal Type | LVDS (1 ch, 6/8-bit) , 20 pins Connector |
| Voltage Supply | 3.3V (Typ.) |
| Max. Ratings | Storage Temp.: -40 ~ 85 °C Operating Temp.: -40 ~ 85 °C ; Vibration Level: 6.8G (66.64 m/s²) |
