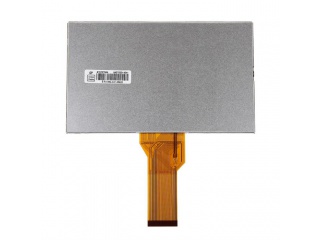

| PartNumber | AT070TN04 |
| Brand | Innolux |
| Size | 7.0 |
| Application | Automotive Display |
| Resolution | 480×234 |
| Composition | a-Si TFT-LCD , LCM |
| Brightness | |
| CR | 300:1 |
| Colors | Full |
| Backlight | CCFL |
| Interface | TFT |
| Diagonal Size | 7.0 inch |
| Pixel Format | 480(RGB)×234 76PPI |
| Active Area | 154.08(H)×86.58(V) mm |
| Bezel Area | - |
| Luminance | 500 cd/m² (Typ.) |
| View Direction | 6 o'clock |
| Viewing Angle | 60/60/40/60 (Typ.)(CR≥10) |
| Support Color | Full color |
| Weight | 160g (Typ.) |
| Frame Rate | 60Hz |
| Interface Type | TFT Specific Analog RGB , 26 pins FPC |
| Power Supply | 5.0/5.0/15.0/-10.0V (Typ.)(VCC/AVDD/VGH/VGL) |
| Environment | Operating Temperature: -30 ~ 85 °C ; Storage Temperature: -40 ~ 95 °C ; Vibration Level: 2.9G (28.4 m/s²) |
| Model | AT070TN04 |
| Type | a-Si TFT-LCD , LCM |
| Configuration | RGB Vertical Stripe |
| Outline Dim. | 164.9(H)×100(V) ×6(D) mm |
| Treatment | Antiglare |
| Contrast Ratio | 300:1 (Typ.) (TM) |
| Response Time | 10/20 (Typ.)(Tr/Td) |
| Operating Mode | TN, Normally White, Transmissive |
| Light Source | CCFL [1 pcs] , 10K hours , W/O Driver |
| Designed For | Automotive Display |
| Touch Panel | Without |
