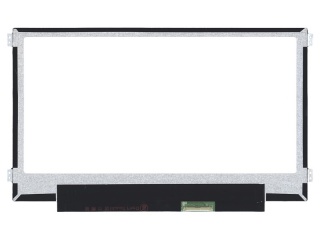

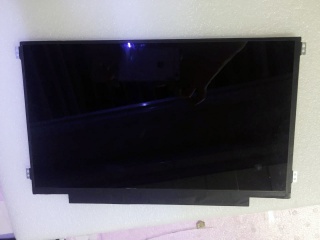

| PartNumber | B116XAK01.0 |
| Brand | AUO |
| Size | 11.6 |
| Application | Laptop |
| Resolution | 1366×768 |
| Composition | a-Si TFT-LCD, LCM |
| Brightness | |
| CR | 800:1 |
| Colors | 262K |
| Backlight | WLED |
| Interface | |
| Model | B116XAK01.0 (AUO405C) |
| Diagonal Size | 11.6 inch |
| Type | a-Si TFT-LCD, LCM |
| Pixel Format | 1366(RGB)×768 [WXGA] 135PPI |
| Configuration | RGB Vertical Stripe |
| Active Area | 256.125(H)×144(V) mm |
| Outline Dim. | 278(H)×168.02(V) ×3.2(D) mm |
| Bezel Area | - |
| Treatment | Antiglare, Hard coating (3H) |
| Luminance | 250 cd/m² (Typ.) |
| Contrast Ratio | 800:1 (Typ.) (TM) |
| View Direction | Symmetry |
| Response Time | 27 (Typ.)(Tr+Tf) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
| Operating Mode | AHVA, Normally Black, Transmissive |
| Support Color | 262K 50% NTSC |
| Light Source | WLED , 15K hours , With LED Driver |
| Form Style | Slim (PCBA Flat, T≤3.2mm) |
| Designed For | Laptop |
| Frame Rate | 60Hz |
| Touch Panel | On-Cell Touch |
| Operating Temperature: 0 ~ 60 °C ; Storage Temperature: -20 ~ 60 °C |
