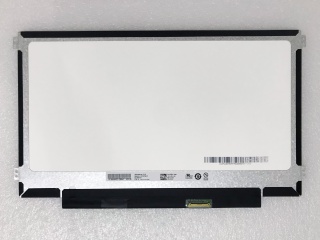

| PartNumber | B116XTN02.3 HW2G |
| Brand | AUO |
| Size | 11.6 |
| Application | Laptop Netbook PC |
| Resolution | 1366×768 |
| Composition | a-Si TFT-LCD , LCM |
| Brightness | |
| CR | 400:1 |
| Colors | 262K |
| Backlight | WLED |
| Interface | eDP |
| Diagonal Size | 11.6 inch |
| Pixel Format | 1366(RGB)×768 [WXGA] 135PPI |
| Active Area | 256.125(H)×144(V) mm |
| Bezel Area | - |
| Luminance | 220 cd/m² (Typ.) |
| View Direction | 6 o'clock |
| Viewing Angle | 45/45/15/35 (Typ.)(CR≥10) |
| Support Color | 262K 45% NTSC |
| Form Style | Slim (PCBA Flat, T≤3.2mm) |
| Frame Rate | 60Hz |
| Interface Type | eDP (2 Lanes) , 30 pins Connector |
| Power Supply | 3.3V (Typ.) |
| Environment | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
| Model | B116XTN02.3 HW2G |
| Type | a-Si TFT-LCD , LCM |
| Configuration | RGB Vertical Stripe |
| Outline Dim. | 278(H)×168(V) ×3(D) mm |
| Treatment | Hard coating (3H) |
| Contrast Ratio | 400:1 (Typ.) (TM) |
| Response Time | 8 (Typ.)(Tr+Td) |
| Operating Mode | TN, Normally White, Transmissive |
| Light Source | WLED , 15K hours , With LED Driver |
| Designed For | Laptop Netbook PC |
| Touch Panel | Without |
