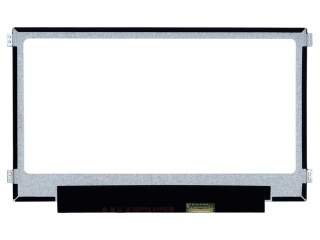

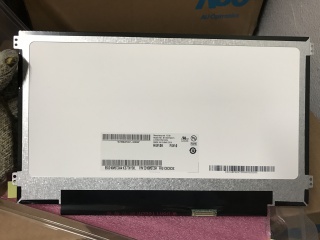

| PartNumber | B116XTN02.5 |
| Brand | AUO |
| Size | 11.6 |
| Application | Laptop Netbook PC |
| Resolution | 1366×768 |
| Composition | LCM , a-Si TFT-LCD |
| Brightness | |
| CR | 400:1 |
| Colors | 262K |
| Backlight | WLED , 15K hours , With LED Driver |
| Interface | eDP |
| Manufacturer | AUO |
| Screen Size | 11.6 inch |
| Pixel Number | 1366(RGB)×768 (WXGA) 135PPI |
| Active Area(mm) | 256.125 × 144 (H×V) |
| Bezel Area(mm) | - |
| Luminance | 250 cd/m² (Typ.) |
| Viewing Angle | 45/45/15/35 (Typ.)(CR≥10) |
| Good View at | 6 o'clock |
| Color Depth | 262K 45% NTSC |
| Outline Shape | Slim (PCBA Flat, T≤3.2mm) |
| Refresh Rate | 60Hz |
| Signal Type | eDP (1 Lane) , eDP1.2 , 30 pins Connector |
| Voltage Supply | 3.3V (Typ.) |
| Max. Ratings | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
| Model Name | B116XTN02.5 (AUO255C) |
| Screen Type | LCM , a-Si TFT-LCD |
| Arrangement | RGB Vertical Stripe |
| Outline(mm) | 278 × 168 × 3 (H×V×D) |
| Treatment | Antiglare |
| Contrast Ratio | 400 : 1 (Typ.) (TM) |
| Response | 8 (Typ.)(Tr+Td) ms |
| Work Mode | TN, Normally White, Transmissive |
| Used for | Laptop Netbook PC |
| Touchscreen | Without |
