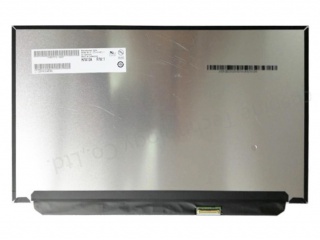

| PartNumber | B125HAN03.1 |
| Brand | AUO |
| Size | 12.5 |
| Application | Laptop |
| Resolution | 1920×1080 |
| Composition | a-Si TFT-LCD , LCM |
| Brightness | |
| CR | 800:1 |
| Colors | 16.2M |
| Backlight | WLED |
| Interface | eDP |
| Diagonal Size | 12.5 inch |
| Pixel Format | 1920(RGB)×1080 [FHD] 176PPI |
| Active Area | 276.48(H)×155.52(V) mm |
| Bezel Area | - |
| Luminance | 400 cd/m² (Typ.) |
| View Direction | Symmetry |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
| Support Color | 16.2M 99% sRGB |
| Form Style | Slim (PCBA Flat, T≤3.2mm) |
| Frame Rate | 60Hz |

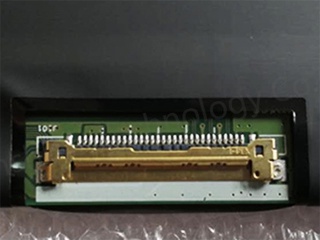

| Interface Type | eDP (2 Lanes) , eDP1.3 , 30 pins Connector |
| Power Supply | 3.3V (Typ.) |
| Environment | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
| Model | B125HAN03.1 (AUO316D) |
| Type | a-Si TFT-LCD , LCM |
| Configuration | RGB Vertical Stripe |
| Outline Dim. | 282.4(H)×179.32(V) ×2.5(D) mm |
| Treatment | Glare (Haze 0%) |
| Contrast Ratio | 800:1 (Typ.) (TM) |
| Response Time | 27 (Typ.)(Tr+Td) |
| Operating Mode | AHVA, Normally Black, Transmissive |
| Light Source | WLED , 15K hours , With LED Driver |
| Designed For | Laptop |
| Touch Panel | Without |
