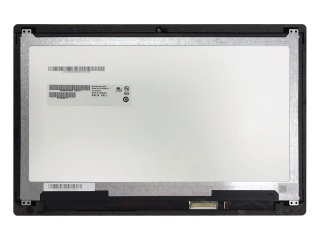

| PartNumber | B133HAB01.0 HW1A |
| Brand | AUO |
| Size | 13.3 |
| Application | Laptop |
| Resolution | 1920×1080 |
| Composition | a-Si TFT-LCD, Assemb |
| Brightness | |
| CR | 800:1 |
| Colors | 262K |
| Backlight | WLED |
| Interface | eDP |
| Model | B133HAB01.0 HW1A (AUO102D) |
| Diagonal Size | 13.3 inch |
| Type | a-Si TFT-LCD, Assembly |
| Pixel Format | 1920(RGB)×1080 [FHD] 166PPI |
| Configuration | RGB Vertical Stripe |
| Active Area | 293.472(H)×165.078(V) mm |
| Outline Dim. | 317(H)×208(V) ×4.2(D) mm |
| Bezel Area | - |
| Treatment | Anti-Scatter, Hard coating (7H) |
| Luminance | 220 cd/m² (Typ.) |
| Contrast Ratio | 800:1 (Typ.) (TM) |
| View Direction | Symmetry |
| Response Time | 25 (Typ.)(Tr+Td) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
| Operating Mode | AHVA, Normally Black, Transmissive |
| Support Color | 262K 45% NTSC |
| Light Source | WLED , 15K hours , With LED Driver |
| Form Style | - |
| Designed For | Laptop |
| Frame Rate | 60Hz |
| Touch Panel | On-Cell Touch |
| Interface Type | eDP (2 Lanes) , eDP1.2 , 40 pins Connector |
| Power Supply | 3.3V (Typ.) |
| Environment | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
