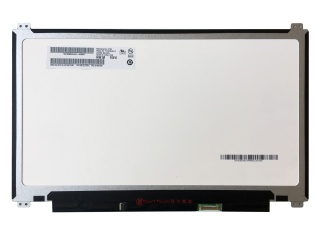

B133HAN04.4


Brand
AUO
Size
13.3
Application
Laptop
Resolution
1920×1080
Composition
a-Si TFT-LCD, LCM
Brightness
CR
800:1
Colors
262K
Backlight
WLED
Interface
In Stock
19086
Specifications
PartNumber B133HAN04.4
BrandAUO
Size13.3
ApplicationLaptop
Resolution1920×1080
Compositiona-Si TFT-LCD, LCM
Brightness
CR800:1
Colors262K
BacklightWLED
Interface
ModelB133HAN04.4 (AUO442D)
Diagonal Size13.3 inch
Typea-Si TFT-LCD, LCM
Pixel Format1920(RGB)×1080  [FHD]  166PPI
ConfigurationRGB Vertical Stripe
Active Area293.472(H)×165.078(V) mm
Outline Dim.306.3(H)×195.29(V) ×3.2(D) mm
Bezel Area-
TreatmentAntiglare
Luminance250 cd/m² (Typ.)
Contrast Ratio800:1 (Typ.) (TM)
View DirectionSymmetry
Response Time27 (Typ.)(Tr+Tf)
Viewing Angle85/85/85/85 (Typ.)(CR≥10)
Operating ModeAHVA, Normally Black, Transmissive
Support Color262K   46% NTSC
Light SourceWLED , 15K hours , With LED Driver
Form StyleSlim (PCBA Flat, T≤3.2mm)
Designed ForLaptop
Frame Rate60Hz
Touch PanelWithout
Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C
