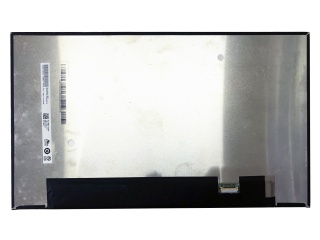

| PartNumber | B133HAN05.6 |
| Brand | AUO |
| Size | 13.3 |
| Application | Laptop |
| Resolution | 1920(RGB)×1080, FHD, 166PPI |
| Composition | LTPS TFT-LCD, LCM |
| Brightness | - |
| CR | 1400:1 |
| Colors | 16.7M |
| Backlight | WLED |
| Interface | eDP |
| Panel Brand | AUO |
| Panel Model | B133HAN05.6 |
| Panel Size | 13.3" |
| Panel Type | LTPS TFT-LCD, LCM |
| Pixel Format | RGB Vertical Stripe |
| Display Area | 293.76(W)×165.24(H) mm |
| Bezel Opening | - |
| Contrast Ratio | 1400:1 (Typ.) (TM) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
| Display Mode | AHVA, Normally Black, Transmissive |
| Best View on | Symmetry |
| Response Time | 27/35 (Typ./Max.)(Tr+Td) |
| Display Colors | 16.7M |
| Lamp Type | WLED , 15K hours , With LED Driver |
| Frequency | 60Hz |
| Touch Screen | Without |
| Shape Style | Slim (PCBA Bent, T≤3.0mm) |
| Signal Interface | eDP (2 Lanes) , eDP1.3 , 30 pins Connector |
| Input Voltage | 3.3V (Typ.) |
| Environment | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
| B133HAN02.0 | AUO | 13.3 | 1920×1080 |
| B133HAN02.1 | AUO | 13.3 | 1920×1080 |
| B133HAN02.5 | AUO | 13.3 | 1920×1080 |
| B133HAN03.0 | AUO | 13.3 | 1920×1080 |
| B133HAT02.5 | AUO | 13.3 | 1920×1080 |
| B133XW01 V1 | AUO | 13.3 | 1366×768 |
| LP133QH1-SPA1 | LG Display | 13.3 | 2560×1440 |
| LT133EE09400 | TOSHIBA | 13.3 | 1366×768 |
| LTN133AT27-102 | Samsung | 13.3 | 1366×768 |
| N133HSE-EB3 | Innolux | 13.3 | 1920×1080 |
