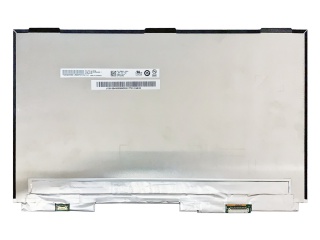

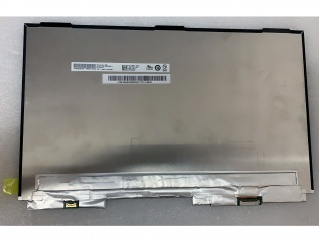

B133ZAN02.1


Brand
AUO
Size
13.3
Application
Laptop
Resolution
3840×2160
Composition
LTPS TFT-LCD , LCM
Brightness
CR
1800:1
Colors
16.7M
Backlight
WLED
Interface
In Stock
19974
Specifications
PartNumber B133ZAN02.1
BrandAUO
Size13.3
ApplicationLaptop
Resolution3840×2160
CompositionLTPS TFT-LCD , LCM
Brightness
CR1800:1
Colors16.7M
BacklightWLED
Interface
Diagonal Size13.3 inch
Pixel Format3840(RGB)×2160  [UHD]  332PPI
Active Area293.76(H)×165.24(V) mm
Bezel Area-
Luminance400 cd/m² (Typ.)
View DirectionSymmetry
Viewing Angle85/85/85/85 (Typ.)(CR≥10)
Support Color16.7M   100% sRGB
Form StyleSlim (PCBA Flat, T≤3.2mm)
Frame Rate60Hz
ModelB133ZAN02.1 (AUO212B)
TypeLTPS TFT-LCD , LCM
ConfigurationRGB Vertical Stripe
Outline Dim.297.86(H)×175.29(V) ×3.38(D) mm
TreatmentGlare (Haze 0%)
Contrast Ratio1800:1 (Typ.) (TM)
Response Time30 (Typ.)(Tr+Td)
Operating ModeAHVA, Normally Black, Transmissive
Light SourceWLED , With LED Driver
Designed ForLaptop
Touch PanelWithout
