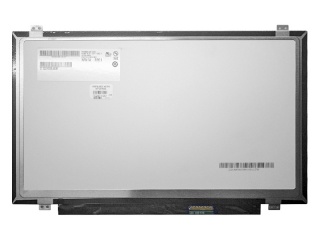

| PartNumber | B140XTN02.5 HW1A |
| Brand | AUO |
| Size | 14.0 |
| Application | Laptop |
| Resolution | 1366×768 |
| Composition | LCM, a-Si TFT-LCD |
| Brightness | |
| CR | 400:1 |
| Colors | 262K |
| Backlight | WLED |
| Interface | |
| Manufacturer | AUO |
| Model Name | B140XTN02.5 HW1A (AUO253C) |
| Screen Size | 14.0 inch |
| Screen Type | LCM, a-Si TFT-LCD |
| Pixel Number | 1366(RGB)×768 (WXGA) 112PPI |
| Arrangement | RGB Vertical Stripe |
| Active Area(mm) | 309.399 × 173.952 (H×V) |
| Outline(mm) | - |
| Luminance | - |
| Contrast Ratio | 400 : 1 (Typ.) (TM) |
| Viewing Angle | 45/45/20/40 (Typ.)(CR≥10) |
| Response | 8 (Typ.)(Tr+Td) ms |
| Good View at | 6 o'clock |
| Work Mode | TN, Normally White, Transmissive |
| Color Depth | 262K |
| Outline Shape | - |
| Used for | Laptop |
| Refresh Rate | 60Hz |
| Touchscreen | Without |
| Max. Ratings | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
| B140XTN01.3 | AUO | 14.0 | 1366×768 |
| B140XTN02.0 | AUO | 14.0 | 1366×768 |
| B140XTN02.3 | AUO | 14.0 | 1366×768 |
| B140XTN02.4 | AUO | 14.0 | 1366×768 |
| B140XTN03.1 | AUO | 14.0 | 1366×768 |
| B140XTN03.2 | AUO | 14.0 | 1366×768 |
| B140XTN03.3 HW0A | AUO | 14.0 | 1366×768 |
| B140XTN03.4 | AUO | 14.0 | 1366×768 |
| B140XTN03.5 | AUO | 14.0 | 1366×768 |
| B140XTN03.9 | AUO | 14.0 | 1366×768 |
