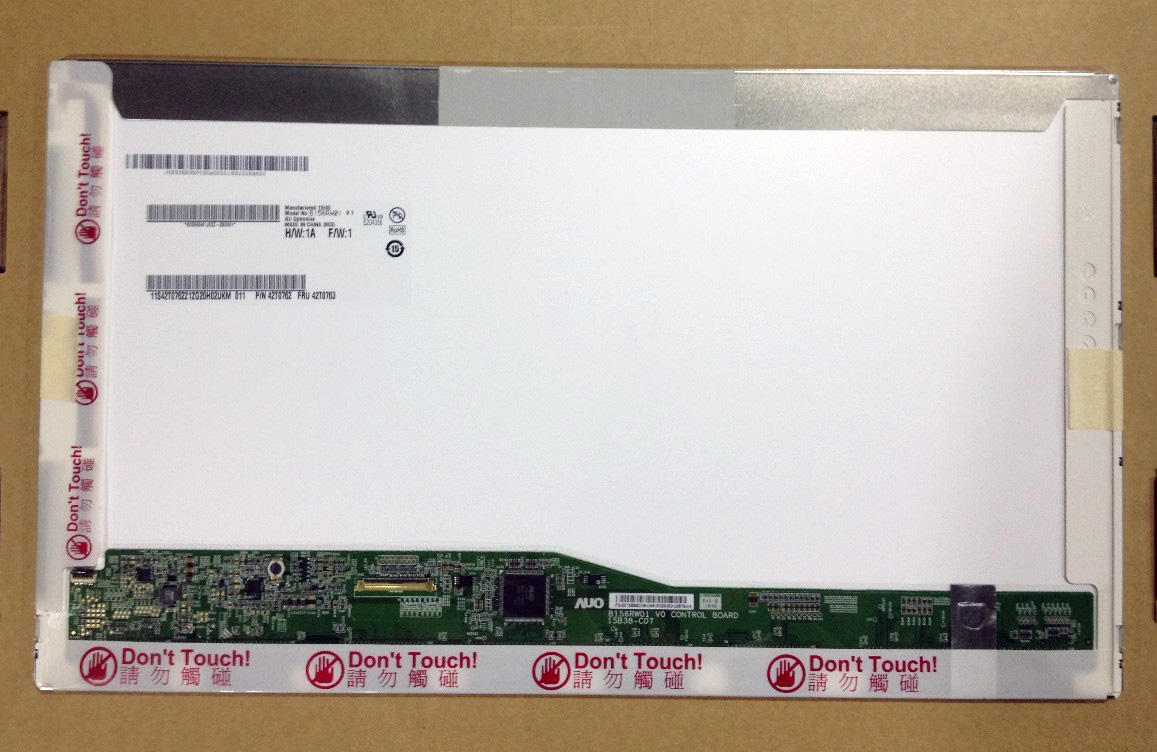

| PartNumber | B156RW01 V1 HW1A |
| Brand | AUO |
| Size | 15.6 |
| Application | Laptop |
| Resolution | 1600(RGB)×900, HD+, 118PPI |
| Composition | a-Si TFT-LCD , LCM |
| Brightness | 220 cd/m² (Typ.) |
| CR | 400:1 |
| Colors | 262K |
| Backlight | WLED |
| Interface | |
| Panel Brand | AUO |
| Panel Size | 15.6" |
| Display Area | 344.16(W)×193.59(H) mm |
| Outline Size | 359.3(W)×209.5(H) ×5.7(D) mm |
| Viewing Angle | 70/70/60/60 (Typ.)(CR≥10) |
| Best View on | 6 o'clock |
| Display Colors | 262K 60% NTSC |
| Frequency | 60Hz |
| Shape Style | Wedge (PCBA Bent, T≥5.2mm) |
| Panel Model | B156RW01 V1 HW1A 1 Compatible |
| Panel Type | a-Si TFT-LCD , LCM |
| Pixel Format | RGB Vertical Stripe |
| Bezel Opening | 347.2(W)×196.5(H) mm |
| Surface | Antiglare, Hard coating (3H) |
| Contrast Ratio | 400:1 (Typ.) (TM) |
| Display Mode | TN, Normally White, Transmissive |
| Response Time | 2/6 (Typ.)(Tr/Td) |
| Lamp Type | WLED , 10K hours , With LED Driver |
| Touch Screen | Without |
| B156RW01 V0 | AUO | 15.6 | 1600×900 |
| B156RW01 V1 | AUO | 15.6 | 1600×900 |
| B156XTN02.4 | AUO | 15.6 | 1366×768 |
| B156XW03 V2 | AUO | 15.6 | 1366×768 |
| B156XW04 V5 | AUO | 15.6 | 1366×768 |
| BT156GW01 V.4 | Innolux | 15.6 | 1366×768 |
| LP156WF1-TLB1 | LG Display | 15.6 | 1920×1080 |
| LTN156AT29-W02 | Samsung | 15.6 | 1366×768 |
| N156BGK-E33 | Innolux | 15.6 | 1366×768 |
| NV156FHM-N43 | BOE | 15.6 | 1920×1080 |
