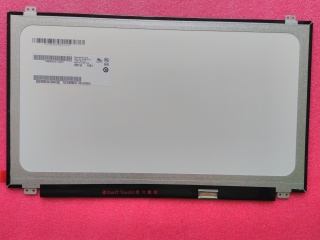

| PartNumber | B156XTN07.0 HW1A |
| Brand | AUO |
| Size | 15.6 |
| Application | Laptop |
| Resolution | 1366×768 |
| Composition | a-Si TFT-LCD , LCM |
| Brightness | |
| CR | 500:1 |
| Colors | 262K |
| Backlight | WLED |
| Interface | |
| Diagonal Size | 15.6 inch |
| Pixel Format | 1366(RGB)×768 [WXGA] 100PPI |
| Active Area | 344.232(H)×193.536(V) mm |
| Bezel Area | - |
| Luminance | 200 cd/m² (Typ.) |
| View Direction | 6 o'clock |
| Viewing Angle | 45/45/15/35 (Typ.)(CR≥10) |
| Support Color | 262K 45% NTSC |
| Form Style | Slim (PCBA Flat, T≤3.2mm) |
| Frame Rate | 60Hz |
| Model | B156XTN07.0 HW1A (AUO10EC) |
| Type | a-Si TFT-LCD , LCM |
| Configuration | RGB Vertical Stripe |
| Outline Dim. | 359.5(H)×223.8(V) ×3.2(D) mm |
| Treatment | Glare (Haze 0%) |
| Contrast Ratio | 500:1 (Typ.) (TM) |
| Response Time | 8 (Typ.)(Tr+Td) |
| Operating Mode | TN, Normally White, Transmissive |
| Light Source | WLED , 15K hours , With LED Driver |
| Designed For | Laptop |
| Touch Panel | Without |
| B156HW01 V7 | AUO | 15.6 | 1920×1080 |
| B156XTN02.0 | AUO | 15.6 | 1366×768 |
| B156XTN02.2 | AUO | 15.6 | 1366×768 |
| B156XTN02.4 | AUO | 15.6 | 1366×768 |
| B156XTN03.1 | AUO | 15.6 | 1366×768 |
| B156XTN03.2 | AUO | 15.6 | 1366×768 |
| B156XTN03.5 | AUO | 15.6 | 1366×768 |
| B156XTN04.1 | AUO | 15.6 | 1366×768 |
| B156XTN04.5 | AUO | 15.6 | 1366×768 |
| B156XTN05.0 | AUO | 15.6 | 1366×768 |
