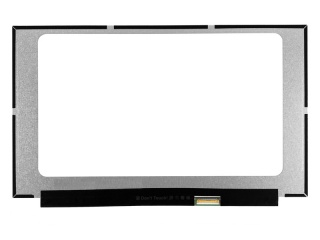

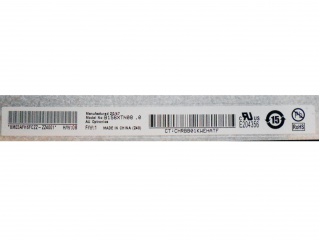

| PartNumber | B156XTN08.0 |
| Brand | AUO |
| Size | 15.6 |
| Application | Laptop |
| Resolution | 1366(RGB)×768, WXGA, 100PPI |
| Composition | a-Si TFT-LCD, LCM |
| Brightness | 220 cd/m² (Typ.) |
| CR | 500:1 |
| Colors | 262K |
| Backlight | WLED |
| Interface | eDP |
| Panel Brand | AUO |
| Panel Model | B156XTN08.0 (AUO20EC) |
| Panel Size | 15.6" |
| Panel Type | a-Si TFT-LCD, LCM |
| Pixel Format | RGB Vertical Stripe |
| Display Area | 344.232(W)×193.536(H) mm |
| Bezel Opening | - |
| Outline Size | 350.66(W)×216.15(H) ×3.2(D) mm |
| Surface | Glare (Haze 0%) |
| Contrast Ratio | 500:1 (Typ.) (TM) |
| Viewing Angle | 45/45/15/35 (Min.)(CR≥10) |
| Display Mode | TN, Normally White, Transmissive |
| Best View on | 6 o'clock |
| Response Time | 8 (Typ.)(Tr+Td) |
| Display Colors | 262K 45% NTSC |
| Lamp Type | WLED , 15K hours , With LED Driver |
| Frequency | 60Hz |
| Touch Screen | - |
| Shape Style | Slim (PCBA Flat, T≤3.2mm) |
| Signal Interface | eDP (1 Lane) , eDP1.2 , 40 pins Connector |
| Input Voltage | 3.3V (Typ.) |
| Environment | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
