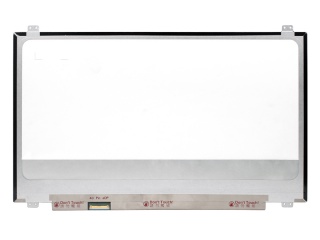

| PartNumber | B173HAN03.0 |
| Brand | AUO |
| Size | 17.3 |
| Application | Laptop Gaming |
| Resolution | 1920×1080 |
| Composition | LCM , a-Si TFT-LCD |
| Brightness | |
| CR | 800:1 |
| Colors | 16.2M |
| Backlight | WLED , 15K hours , With LED Driver |
| Interface | eDP |
| Manufacturer | AUO |

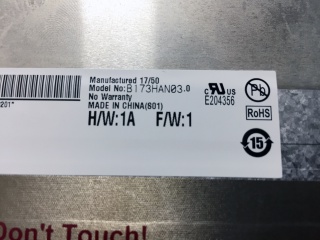

| Model Name | B173HAN03.0 (AUO309D) |
| Screen Size | 17.3 inch |
| Screen Type | LCM , a-Si TFT-LCD |
| Pixel Number | 1920(RGB)×1080 (FHD) 127PPI |
| Arrangement | RGB Vertical Stripe |
| Active Area(mm) | 381.888 × 214.812 (H×V) |
| Outline(mm) | 398.1 × 250.5 × 4 (H×V×D) |
| Bezel Area(mm) | - |
| Treatment | Antiglare, Hard coating (3H) |
| Luminance | 300 cd/m² (Typ.) |
| Contrast Ratio | 800 : 1 (Typ.) (TM) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
| Response | 9 (Typ.)(Tr+Td) ms |
| Good View at | Symmetry |
| Work Mode | AHVA, Normally Black, Transmissive |
| Color Depth | 16.2M 72% NTSC |
| Outline Shape | Flat (PCBA Flat, T3.4~4.0mm) |
| Used for | Laptop Gaming |
| Refresh Rate | 144Hz |
| Touchscreen | Without |
| Signal Type | eDP (4 Lanes) , eDP1.4 , HBR2 (5.4G/lane) , 40 pins Connector |
| Voltage Supply | 3.3V (Typ.) |
| Max. Ratings | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
