| PartNumber | B173HAN03.1 |
| Brand | AUO |
| Size | 17.3 |
| Application | Laptop Gaming |
| Resolution | 1920(RGB)×1080, FHD, 127PPI |
| Composition | a-Si TFT-LCD, LCM |
| Brightness | 300 cd/m² (Typ.) |
| CR | 800:1 |
| Colors | 16.2M |
| Backlight | WLED |
| Interface | eDP |
| Panel Brand | AUO |
| Panel Model | B173HAN03.1 (AUO319D) |
| Panel Size | 17.3" |
| Panel Type | a-Si TFT-LCD, LCM |
| Pixel Format | RGB Vertical Stripe |
| Display Area | 381.888(W)×214.812(H) mm |
| Bezel Opening | - |
| Outline Size | 398.1(W)×250.5(H) ×4(D) mm |
| Surface | Antiglare, Hard coating (3H) |
| Contrast Ratio | 800:1 (Typ.) (TM) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
| Display Mode | AHVA, Normally Black, Transmissive |
| Best View on | Symmetry |
| Response Time | 9 (Typ.)(Tr+Td) |
| Display Colors | 16.2M 72% NTSC |
| Lamp Type | WLED , 15K hours , With LED Driver |
| Frequency | 144Hz |
| Touch Screen | Without |
| Shape Style | Flat (PCBA Flat, T3.4~4.0mm) |

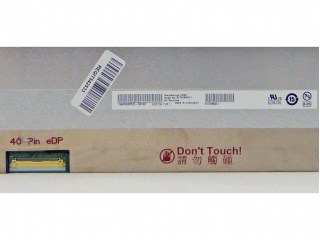

| Signal Interface | eDP (4 Lanes) , eDP1.4 , HBR2 (5.4G/lane) , 40 pins Connector |
| Input Voltage | 3.3V (Typ.) |
| Environment | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
