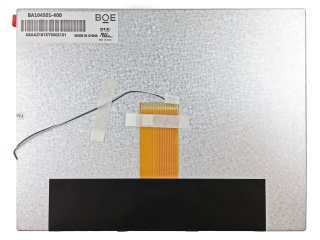

| PartNumber | BA104S01-400 |
| Brand | BOE |
| Size | 10.4 |
| Application | Digital Photo Frame Home Appliance |
| Resolution | 800(RGB)×600, SVGA, 96PPI |
| Composition | a-Si TFT-LCD , LCM |
| Brightness | 350 cd/m² (Typ.) |
| CR | 800:1 |
| Colors | 262K/16.7M |
| Backlight | 3S12P |
| Interface | Parallel |
| Panel Brand | BOE |
| Panel Size | 10.4" |
| Display Area | 211.2(W)×158.4(H) mm |
| Outline Size | 228.4(W)×175.4(H) mm |
| Viewing Angle | 80/80/65/75 (Typ.)(CR≥10) |
| Best View on | - |
| Display Colors | 262K/16.7M 55% NTSC |
| Frequency | 60Hz |
| Panel Weight | TBD |
| Signal Interface | Parallel RGB (1 ch, 6/8-bit) , 60 pins FPC |
| Input Voltage | 3.3/9/18/-8V (Typ.)(VCC/AVDD/VGH/VGL) |
| Environment | Operating Temp.: -20 ~ 60 °C ; Storage Temp.: -30 ~ 70 °C |
| Panel Model | BA104S01-400 |
| Panel Type | a-Si TFT-LCD , LCM |
| Pixel Format | RGB Vertical Stripe |
| Bezel Opening | 214.4(W)×161.6(H) mm |
| Surface | Antiglare |
| Contrast Ratio | 800:1 (Typ.) (TM) |
| Display Mode | TN, Normally White, Transmissive |
| Response Time | 30 (Typ.)(Tr+Td) |
| Lamp Type | 3S12P WLED , 20K hours , Without Driver |
| Touch Screen | Without |
