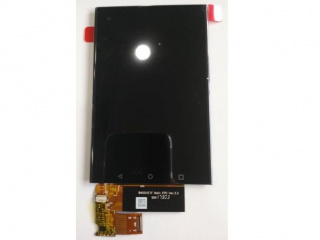

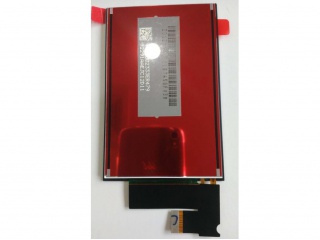

| PartNumber | BV045FHM-L00-1S00 |
| Brand | BOE |
| Size | 4.5 |
| Application | Mobile Phone |
| Resolution | 1080×1620 |
| Composition | a-Si TFT-LCD, LCM |
| Brightness | |
| CR | 1000:1 |
| Colors | 16.7M |
| Backlight | WLED |
| Interface | |
| Model | BV045FHM-L00-1S00 |
| Diagonal Size | 4.5 inch |
| Type | a-Si TFT-LCD, LCM |
| Pixel Format | 1080(RGB)×1620 434PPI |
| Configuration | RGB Vertical Stripe |
| Active Area | 63.115(H)×94.673(V) mm |
| Outline Dim. | 68.14(H)×104.97(V) ×3(D) mm |
| Bezel Area | - |
| Treatment | Anti Fingerprint |
| Luminance | 580 cd/m² (Typ.) |
| Contrast Ratio | 1000:1 (Typ.) (TM) |
| View Direction | Symmetry |
| Response Time | 50 (Max.)(G to G) |
| Viewing Angle | 80/80/80/80 (Typ.)(CR≥10) |
| Operating Mode | ADS, Normally Black, Transmissive |
| Support Color | 16.7M 100% sRGB |
| Light Source | WLED [8S2P] , 15K hours , W/O Driver |
| Weight | TBD |
| Designed For | Mobile Phone |
| Frame Rate | 60Hz |
| Touch Panel | In-Cell Touch |
| Operating Temperature: -20 ~ 60 °C ; Storage Temperature: -30 ~ 70 °C |
| ACX435AKN-7 | SONY | 4.5 | 800×1280 |
| BTL454885-W698L | BOE | 4.5 | 480×854 |
| BV045WVM-N00 | BOE | 4.5 | 480×800 |
| H446TAN01.1 | AUO | 4.5 | 720×1280 |
| LH450WX3-SD01 | LG Display | 4.5 | 720×1280 |
| LT044MDW7000 | TOSHIBA | 4.5 | 720×1280 |
| PW045XS1 | E Ink | 4.5 | 320×234 |
| PW045XS2 | E Ink | 4.5 | 320×234 |
| TM045XDZP08 | Tianma | 4.5 | 540×960 |
| TM045YDH27 | Tianma | 4.5 | 480×854 |
