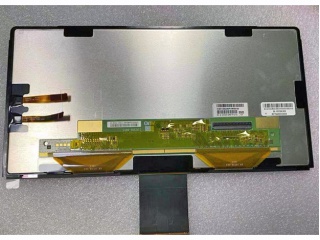

| PartNumber | C100HAT01.0 |
| Brand | AUO |
| Size | 10.0 |
| Application | Automotive Display |
| Resolution | 1560×700 |
| Composition | LCM, a-Si TFT-LCD |
| Brightness | |
| CR | |
| Colors | 16.7M |
| Backlight | WLED |
| Interface | |
| Manufacturer | AUO |
| Model Name | C100HAT01.0 |
| Screen Size | 10.0 inch |
| Screen Type | LCM, a-Si TFT-LCD |
| Pixel Number | 1560(RGB)×700 171PPI |
| Arrangement | RGB Vertical Stripe |
| Active Area(mm) | 231.66 × 103.95 (H×V) |
| Outline(mm) | 259.36 × 131.32 (H×V×D) |
| Bezel Area(mm) | - |
| Treatment | Antiglare, Antireflection |
| Viewing Angle | 80/80/80/80 (Typ.)(CR≥10) |
| Response | 30 (Max.)(Tr+Td) ms |
| Good View at | Symmetry |
| Work Mode | AHVA, Normally Black, Transmissive |
| Color Depth | 16.7M |
| Mass | 375±38g |
| Used for | Automotive Display |
| Refresh Rate | 60Hz |
| Touchscreen | - |
| Storage Temp.: -40 ~ 95 °C Operating Temp.: -30 ~ 85 °C |
