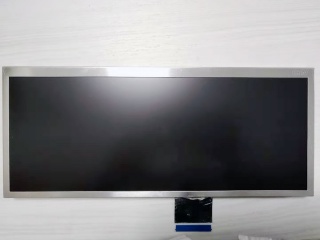

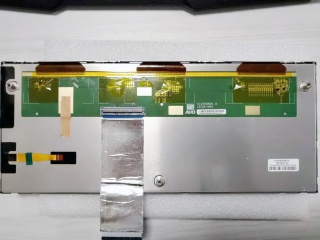

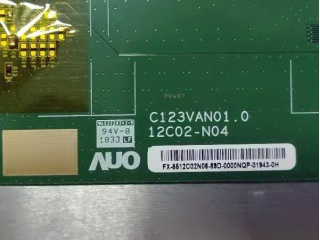

| PartNumber | C123VAN01.0 |
| Brand | AUO |
| Size | 12.3 |
| Application | Automotive Display |
| Resolution | 1440(RGB)×540, 125PPI |
| Composition | a-Si TFT-LCD , LCM |
| Brightness | |
| CR | |
| Colors | 16.7M |
| Backlight | - |
| Interface | RSDS |
| Panel Brand | AUO |
| Panel Size | 12.3" |
| Display Area | 291.6(W)×109.35(H) mm |
| Outline Size | 308.5(W)×129(H) mm |
| Viewing Angle | 80/80/80/80 (Typ.)(CR≥10) |
| Best View on | Symmetry |
| Display Colors | 16.7M |
| Frequency | 60Hz |
| Panel Weight | 580±58g |
| Signal Interface | RSDS (1 Channel) FPC |
| Environment | Operating Temp.: -30 ~ 85 °C ; Storage Temp.: -40 ~ 95 °C |
| Panel Model | C123VAN01.0 |
| Panel Type | a-Si TFT-LCD , LCM |
| Pixel Format | RGB Vertical Stripe |
| Bezel Opening | 294.8(W)×112.35(H) mm |
| Surface | Antiglare, Hard coating (3H) |
| Display Mode | AHVA, Normally Black, Transmissive |
| Response Time | - |
| Lamp Type | |
| Touch Screen | Without |
| AV123Z7M-N11 | BOE | 12.3 | 1920×720 |
| C123HAN01.0 | AUO | 12.3 | 1920×720 |
| LA123WF1-SL01 | LG Display | 12.3 | 1920×720 |
| LAM1233548D | JDI | 12.3 | 1920×720 |
| LD123UX1-SMA1 | LG Display | 12.3 | 1600×1200 |
| LQ123K1LG03 | SHARP | 12.3 | 1280×480 |
| LQ123K3LG01 | SHARP | 12.3 | 1280×480 |
| TJ123NP01AA | TPO | 12.3 | 1280×480 |
| TJ123NP01BA | Innolux | 12.3 | 1280×480 |
| TJ123NP01CA | Innolux | 12.3 | 1280×480 |
