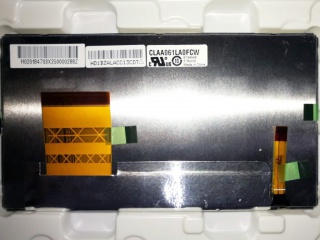

| PartNumber | CLAA061LA0FCW |
| Brand | CPT |
| Size | 6.1 |
| Application | Automotive Display |
| Resolution | 800(RGB)×480, WVGA, 153PPI |
| Composition | a-Si TFT-LCD , LCM |
| Brightness | - |
| CR | 400:1 |
| Colors | 262K |
| Backlight | WLED |
| Interface | TTL |
| Panel Brand | CPT |
| Panel Size | 6.1" |
| Display Area | 136.2(W)×72(H) mm |
| Viewing Angle | 70/70/50/70 (Typ.)(CR≥10) |
| Best View on | 6 o'clock |
| Display Colors | 262K 70% NTSC |
| Frequency | 60Hz |
| Panel Weight | - |
| Signal Interface | TTL (1 ch, 6-bit) |
| Environment | Operating Temp.: -30 ~ 85 °C ; Storage Temp.: -40 ~ 90 °C ; Vibration Level: 3.0G (29.4 m/s²) |
| Panel Model | CLAA061LA0FCW |
| Panel Type | a-Si TFT-LCD , LCM |
| Pixel Format | RGB Vertical Stripe |
| Bezel Opening | - |
| Contrast Ratio | 400:1 (Typ.) (TM) |
| Display Mode | TN, Normally White, Transmissive |
| Response Time | 20 (Typ.)(Tr+Td) |
| Lamp Type | WLED |
| Touch Screen | Without |
