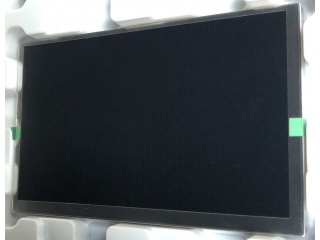

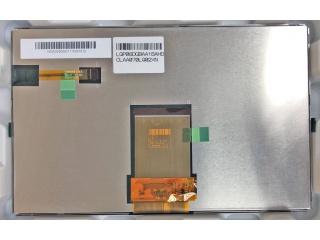

| PartNumber | CLAA070LQ02 XN |
| Brand | CPT |
| Size | 7.0 |
| Application | Automotive Display |
| Resolution | 800×480 |
| Composition | LCM, a-Si TFT-LCD |
| Brightness | |
| CR | 900:1 |
| Colors | 262K/16.7M |
| Backlight | 7S2P WLED , 30K hours , No Driver |
| Interface | LVDS |
| Manufacturer | CPT |
| Model Name | CLAA070LQ02 XN |
| Screen Size | 7.0 inch |
| Screen Type | LCM, a-Si TFT-LCD |
| Pixel Number | 800(RGB)×480 (WVGA) 133PPI |
| Arrangement | RGB Vertical Stripe |
| Active Area(mm) | 152.4 × 91.44 (H×V) |
| Outline(mm) | 165 × 104 × 7.3 (H×V×D) |
| Bezel Area(mm) | 154.4 × 93.44 (H×V) |
| Treatment | Antiglare (Haze 25%) |
| Luminance | 760 cd/m² (Typ.) |
| Contrast Ratio | 900 : 1 (Typ.) (TM) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
| Response | 25 (Typ.)(Tr+Tf) ms |
| Good View at | Symmetry |
| Work Mode | HFFS, Normally Black, Transmissive |
| Color Depth | 262K/16.7M 70% NTSC |
| Mass | 175g (Typ.) |
| Used for | Automotive Display |
| Refresh Rate | 60Hz |
| Touchscreen | Without |
| Signal Type | LVDS (1 ch, 6/8-bit) , FPC 60 pins |
| Voltage Supply | 3.3/13.0/20.0/-6.0V (Typ.)(DVDD/AVDD/VGH/VGL) |
| Max. Ratings | Storage Temp.: -40 ~ 90 °C Operating Temp.: -30 ~ 85 °C ; Vibration Level: 2.9G (28.4 m/s²) |
