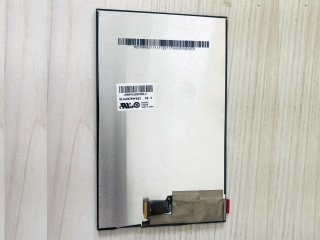

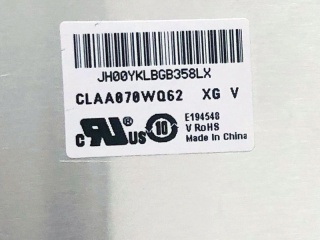

| PartNumber | CLAA070WQ62 XG |
| Brand | CPT |
| Size | 7.0 |
| Application | Pad & Tablet |
| Resolution | 800×1280 |
| Composition | a-Si TFT-LCD , LCM |
| Brightness | |
| CR | 800:1 |
| Colors | 16.7M |
| Backlight | WLED |
| Interface | MIPI |
| Diagonal Size | 7.0 inch |
| Pixel Format | 800(RGB)×1280 [WXGA] 215PPI |
| Active Area | 94.2(H)×150.72(V) mm |
| Bezel Area | - |
| Luminance | 350 cd/m² (Typ.) |
| View Direction | Symmetry |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
| Support Color | 16.7M 70% NTSC |
| Weight | - |
| Frame Rate | 60Hz |
| Interface Type | MIPI (4 data lanes) , 39 pins FPC |
| Power Supply | 1.8/3.3/15/-10V (Typ.)(VDDI/VCI/VGH/VGL) |
| Environment | Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C ; Vibration Level: 2.9G (28.4 m/s²) |
| Model | CLAA070WQ62 XG |
| Type | a-Si TFT-LCD , LCM |
| Configuration | RGB Vertical Stripe |
| Outline Dim. | 99.6(H)×161.62(V) ×4.05(D) mm |
| Treatment | Hard coating |
| Contrast Ratio | 800:1 (Typ.) (TM) |
| Response Time | 30 (Typ.)(Tr+Td) |
| Operating Mode | FFS, Normally Black, Transmissive |
| Light Source | WLED [3S6P] , 15K hours , W/O Driver |
| Designed For | Pad & Tablet |
| Touch Panel | On-Cell Touch |
