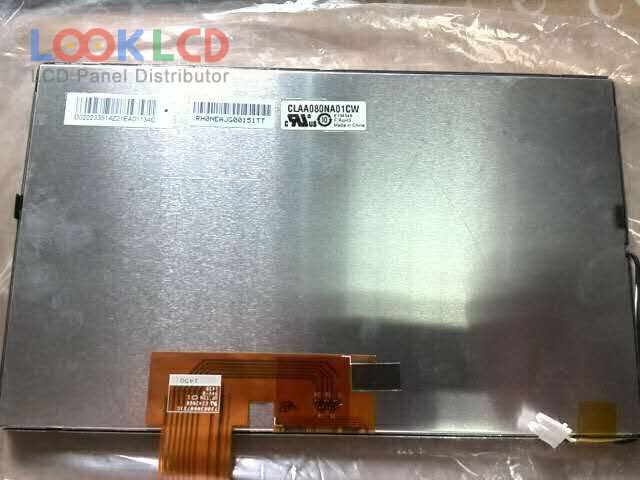

| PartNumber | CLAA080NA01 CW |
| Brand | CPT |
| Size | 8.0 |
| Application | CNS |
| Resolution | 1024(RGB)×600 , WSVGA |
| Composition | LCM |
| Brightness | 670 cd/m² (Typ.) |
| CR | 800:1 |
| Colors | 262K/16.7M |
| Backlight | WLED |
| Interface | LVDS |
| Panel Brand | CPT |
| Panel Model | CLAA080NA01 CW |
| Panel Type | a-Si TFT-LCD , LCM |
| Panel Size | 8.0 inch |
| Display Mode | TN, Normally White, Transmissive |
| Active Area | 176.64×99.36 mm |
| Outline | 192.8×116.9×6.7 mm |
| Surface | Antiglare |
| Contrast Ratio | 800:1 (Typ.) |
| Display Colors | 262K/16.7M (6-bit / 6-bit + Hi-FRC), CIE193150% |
| Response Time | 25 (Typ.)(Tr+Td) |
| Viewing Angle | 75/75/50/80 (Typ.)(CR≥10)(L/R/U/D) |
| Frequency | 60Hz |
| Lamp Type | 13S3PWLEDWithout Driver |
| Signal Interface | LVDS (1 ch, 6/8-bit), 40 pins |
| Input Voltage | 3.3/9.6/21.0/-6.0V (Typ.)(DVDD/AVDD/VGH/VGL) |
