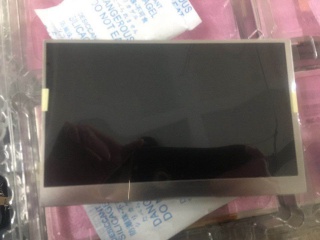

| PartNumber | CLAA080WK02 XN |
| Brand | CPT |
| Size | 8.0 |
| Application | Automotive Display |
| Resolution | 1280×720 |
| Composition | a-Si TFT-LCD, LCM |
| Brightness | |
| CR | 900:1 |
| Colors | 262K/16.7M |
| Backlight | WLED |
| Interface | LVDS |

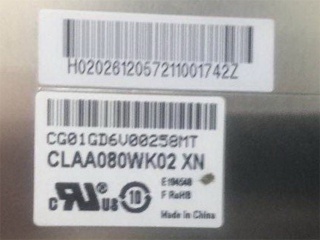

| Model | CLAA080WK02 XN |
| Diagonal Size | 8.0 inch |
| Type | a-Si TFT-LCD, LCM |
| Pixel Format | 1280(RGB)×720 [WXGA] 183PPI |
| Configuration | RGB Vertical Stripe |
| Active Area | 177.024(H)×99.576(V) mm |
| Outline Dim. | 186.5(H)×117.22(V) ×13.1(D) mm |
| Bezel Area | 179.03(H)×101.58(V) mm |
| Treatment | Antiglare (Haze 25%) |
| Luminance | 600 cd/m² (Typ.) |
| Contrast Ratio | 900:1 (Typ.) (TM) |
| View Direction | Symmetry |
| Response Time | 25 (Typ.)(Tr+Td) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
| Operating Mode | HFFS, Normally Black, Transmissive |
| Support Color | 262K/16.7M 70% NTSC |
| Light Source | WLED [5S4P] , 30K hours , W/O Driver |
| Weight | TBD |
| Designed For | Automotive Display |
| Frame Rate | 60Hz |
| Touch Panel | Without |

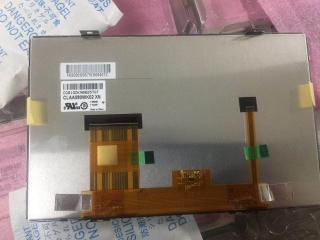

| Interface Type | LVDS (1 ch, 6/8-bit) , 60 pins FPC |
| Power Supply | 3.3/12.4/22/-6.0V (Typ.)(DVDD/AVDD/VGH/VGL) |
| Environment | Operating Temperature: -30 ~ 85 °C ; Storage Temperature: -40 ~ 90 °C ; Vibration Level: 2.9G (28.4 m/s²) |
