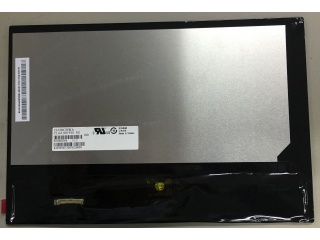

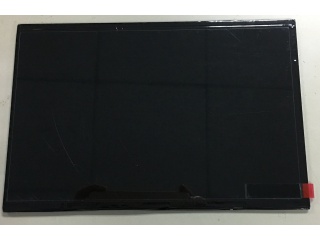

| PartNumber | CLAA101FP0J XG |
| Brand | CPT |
| Size | 10.1 |
| Application | Industrial Outdoor High Brightness |
| Resolution | 1920(RGB)×1200, WUXGA, 225PPI |
| Composition | a-Si TFT-LCD, LCM |
| Brightness | 1200 cd/m² (Typ.) |
| CR | 750:1 |
| Colors | 16.7M |
| Backlight | WLED |
| Interface | eDP |
| Panel Brand | CPT |
| Panel Model | CLAA101FP0J XG |
| Panel Size | 10.1" |
| Panel Type | a-Si TFT-LCD, LCM |
| Pixel Format | RGB Vertical Stripe |
| Display Area | 216.576(W)×135.36(H) mm |
| Bezel Opening | - |
| Outline Size | 228.99(W)×154.4(H) ×5.5(D) mm |
| Surface | Antiglare, Hard coating |
| Contrast Ratio | 750:1 (Typ.) (TM) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
| Display Mode | HFFS, Normally Black, Transmissive |
| Best View on | Symmetry |
| Response Time | 30 (Typ.)(Tr+Td) |
| Display Colors | 16.7M 50% NTSC |
| Lamp Type | WLED , 15K hours , With LED Driver |
| Frequency | 60Hz |
| Touch Screen | Without |
| Panel Weight | TBD |
| Signal Interface | eDP (2 Lanes) , eDP1.2 , 30 pins Connector |
| Input Voltage | 3.3V (Typ.) |
| Environment | Operating Temp.: 0 ~ 60 °C ; Storage Temp.: -10 ~ 70 °C ; Vibration Level: 2.9G (28.4 m/s²) |
