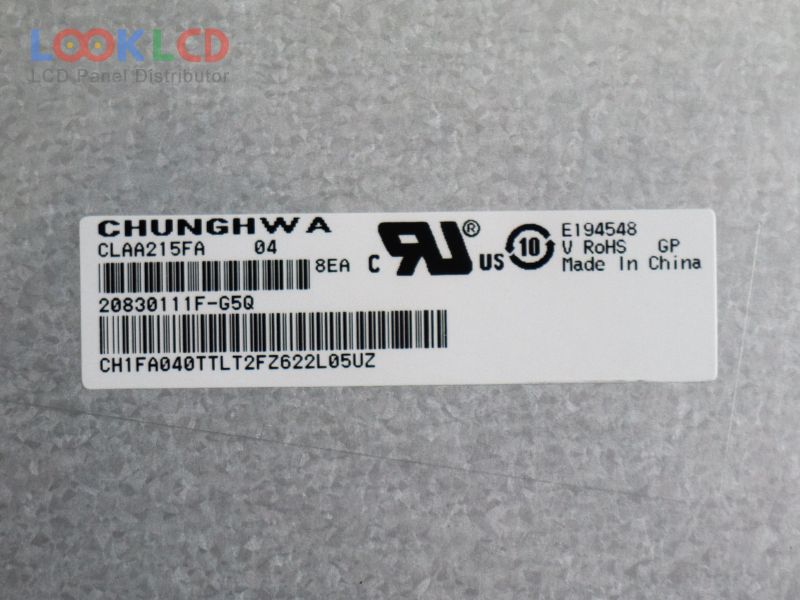

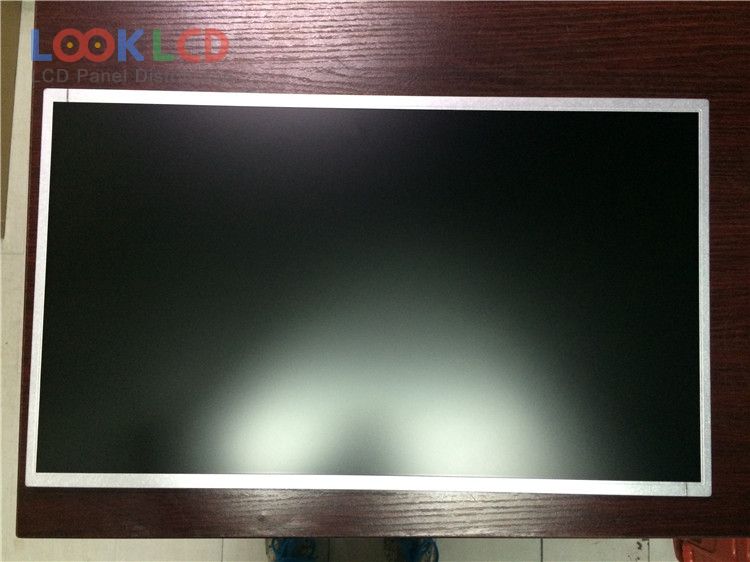

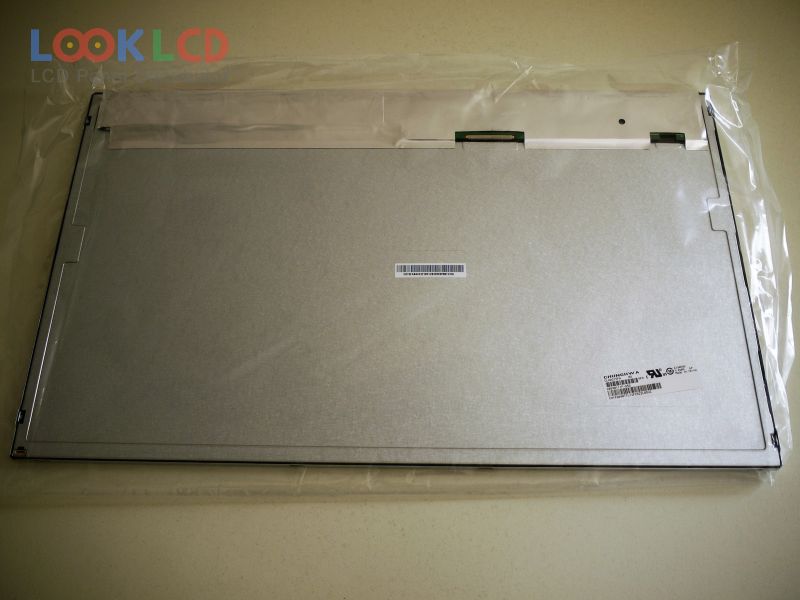

| PartNumber | CLAA215FA04 |
| Brand | CPT |
| Size | 21.5 |
| Application | DMPC |
| Resolution | 1920(RGB)×1080 , FHD |
| Composition | LCM |
| Brightness | 250 cd/m² (Typ.) |
| CR | 1000:1 |
| Colors | 16.7M |
| Backlight | WLED |
| Interface | LVDS |
| Panel Brand | CPT |
| Panel Model | CLAA215FA04 |
| Panel Type | a-Si TFT-LCD , LCM |
| Panel Size | 21.5 inch |
| Display Mode | TN, Normally White, Transmissive |
| Active Area | 476.64×268.11 mm |
| Outline | 495.6×292.2×10.35 mm |
| Surface | Antiglare, Hard coating (3H) |
| Contrast Ratio | 1000:1 (Typ.) |
| Display Colors | 16.7M (6-bit + Hi-FRC), CIE193168% |
| Response Time | 5 (Typ.)(Tr+Td) |
| Viewing Angle | 85/85/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| Frequency | 60Hz |
| Lamp Type | 10S8P×2CNWLEDWithout Driver |
| Signal Interface | LVDS (2 ch, 8-bit), 30 pins |
| Input Voltage | 5.0V (Typ.) |
| CLAA215FA01 | CPT | 21.5 | 1920×1080 |
| CLAA215FA04 | CPT | 21.5 | 1920×1080 |
| CLAA215FA04 V4 | CPT | 21.5 | 1920×1080 |
| CLAA220WA01 | CPT | 21.6 | 1680×1050 |
| CLAA260WU09 | CPT | 25.5 | 1920×1200 |
| CLAA260WU09M | CPT | 25.5 | 1920×1200 |
| LC215DTCA | PANDA | 21.5 | 1920×1080 |
| LC215EUE-TEA1 | LG Display | 21.5 | 1920×1080 |
| M215HGE-L10 | Innolux | 21.5 | 1920×1080 |
| MT215DW01 V.0 | Innolux | 21.5 | 1920×1080 |
| LC215EUE-TEA1 | LG Display | 21.5 | 1920×1080 |
| LM185TT1A | PANDA | 18.5 | 1366×768 |
| LM185WH1-TLH1 | LG Display | 18.5 | 1366×768 |
| LM240WU5-SLA4 | LG Display | 24.0 | 1920×1200 |
| LM270WQ1-SDE3 | LG Display | 27.0 | 2560×1440 |
| LTM170EU-L01 | Samsung | 17.0 | 1280×1024 |
| MV215FHM-N30 | BOE | 21.5 | 1920×1080 |
| NL10276AC30-04R | NLT | 15.0 | 1024×768 |
| NL128102AC23-01 | NLT | 15.4 | 1280×1024 |
| TX38D14VC0CAA | KOE | 15.0 | 1024×768 |
