| PartNumber | COM104H9M11SSS |
| Brand | Ortustech |
| Size | 10.4 |
| Application | Industrial |
| Resolution | 800×600 |
| Composition | a-Si TFT-LCD, LCM |
| Brightness | |
| CR | 1000:1 |
| Colors | 262K/16.7M |
| Backlight | WLED |
| Interface | LVDS |
| Model | COM104H9M11SSS |
| Diagonal Size | 10.4 inch |
| Type | a-Si TFT-LCD, LCM |
| Pixel Format | 800(RGB)×600 [SVGA] 96PPI |
| Configuration | RGB Vertical Stripe |

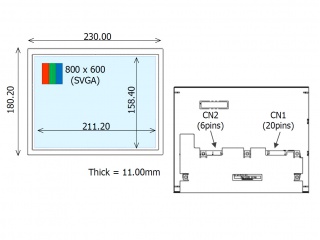

| Active Area | 211.2(H)×158.4(V) mm |
| Outline Dim. | 230(H)×180.2(V) ×11.5(D) mm |
| Luminance | 650 cd/m² (Typ.) |
| Contrast Ratio | 1000:1 (Typ.) (TM) |
| View Direction | Symmetry |
| Response Time | 40 (Max.)(Tr+Td) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
| Operating Mode | FFS, Normally Black, Transflective |
| Support Color | 262K/16.7M 47% NTSC |
| Light Source | WLED , With LED Driver |
| Weight | TBD |
| Designed For | Industrial |
| Frame Rate | 60Hz |
| Touch Panel | Without |
| Interface Type | LVDS (1 ch, 6/8-bit) , 20 pins Connector |
| Power Supply | 3.3V (Typ.) |
| Environment | Operating Temperature: -30 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C |
| AA104VC04 | Mitsubishi | 10.4 | 640×480 |
| AA104VC06 | Mitsubishi | 10.4 | 640×480 |
| LB104S01-TL02 | LG Display | 10.4 | 800×600 |
| LP104V1 | LG Display | 10.4 | 640×480 |
| LQ104S1LG81 | SHARP | 10.4 | 800×600 |
| LQ104V1DG11 | SHARP | 10.4 | 640×480 |
| LT104AD18F00 | TOSHIBA | 10.4 | 800×600 |
| LTD104EA5F | TOSHIBA | 10.4 | 1024×768 |
| NL6448AC33-18A | NLT | 10.4 | 640×480 |
| TX26D17VM2BAA | KOE | 10.4 | 640×480 |
